4A-10 FRONT DRIVE SHAFT
HEMISPHERE OIL-SEALS SUBSTITUTION
1) Remove steering pivot assembly (see 4A-3).

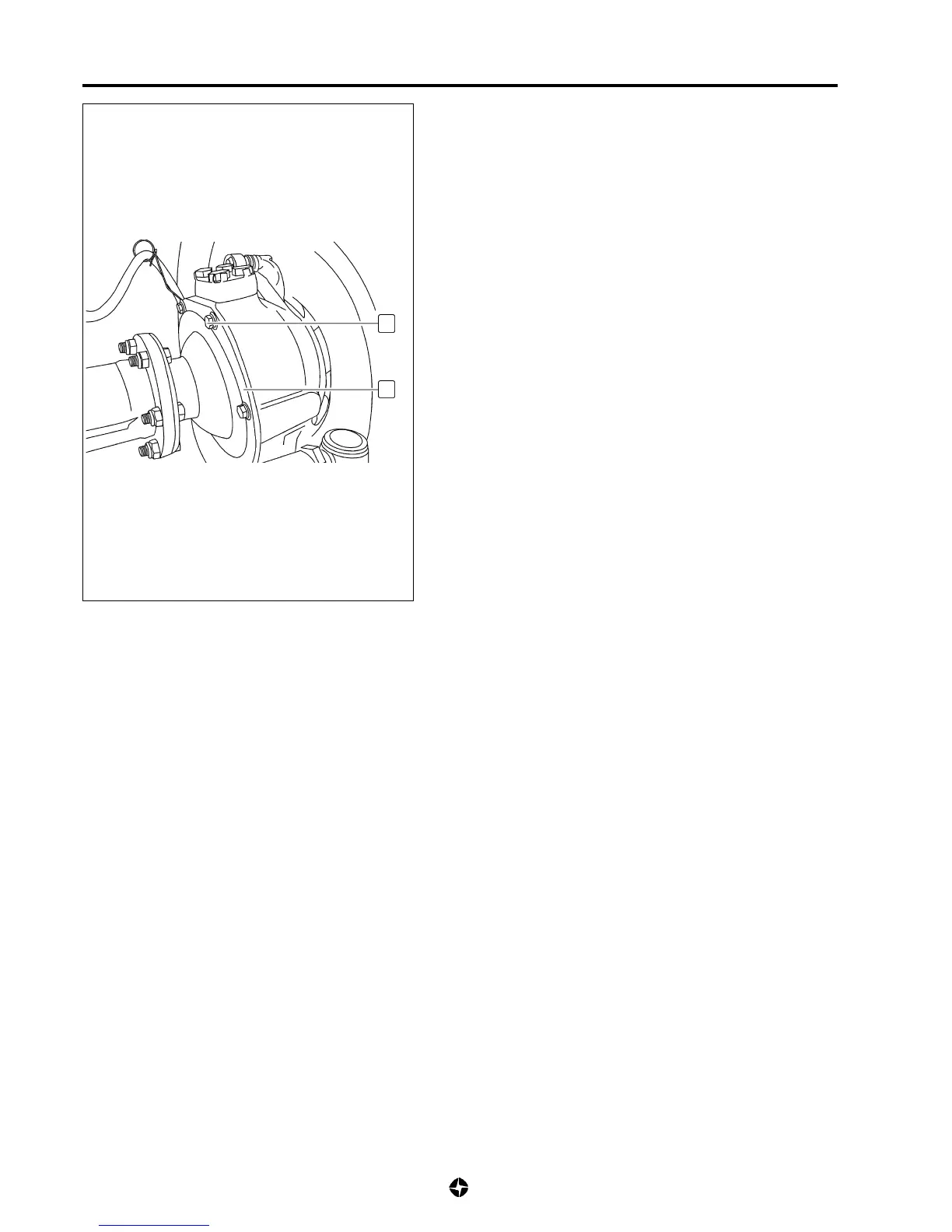

2) Remove screws (1) fixing oil-seal extension case (2), withdraw
oil-seal extension case and the oil-seal.
3) Install a new oil-seal previously applying oil to the enclosing
lip.
4) Fix oil-seal to extension case (2) tightening screws to the
specified tightening torque.
Tightening torque for screws fixing oil-seal plate of
the hemisphere oil-seal:
0.8 ÷ 1.1 Kg-m (8 ÷ 11 Nm)
5) Install steering pivot assembly (see 4A-3).
