4A-16 FRONT DRIVE SHAFT

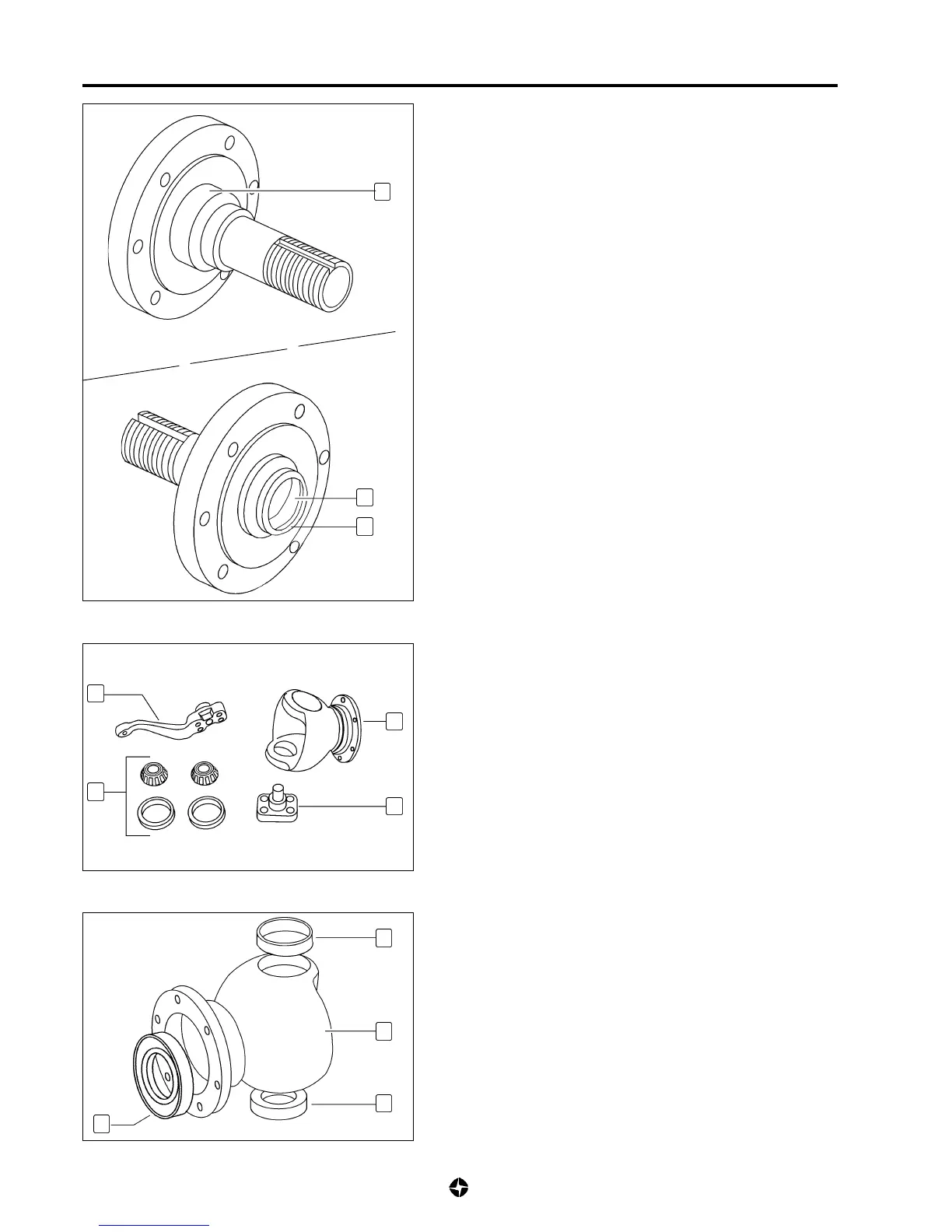

2) Check in the spindle:
• Wear of oil-seal closing ring (27). If necessary replace the
flange.
• Centering bushing (29); replace it if worn.
• Oil-seal (28); replace each time a general repair is carried
out.
27
28
29
19
18
21
16
3) Check general worthiness of the hemisphere (21), lower
rotation axle (19), upper rotation axle (16), bearing (18) and
bearing seats.
Substitute when wear, pittings, knocks or deformations are
observed.
4) If deemed necessary to substitute conical bearings of the
hemisphere, substitute the external bearing seats (30) using
the appropriate soft material puller.
5) Substitute oil-seal (35) with the closing lip towards the
hemisphere.
NOTE:
If you notice lack of pressure while installating bearing
seats, verify that the defect is related to hemisphere
(21) or the bearings; substitute accordingly.
35
30
21
30
