FRONT DRIVE SHAFT 4A-21
• Fit a screw (D) on the drive shaft end to be able to take it
out or to put it in.
• Install washer for the longitudinal adjustment (3) and circlip
(2).

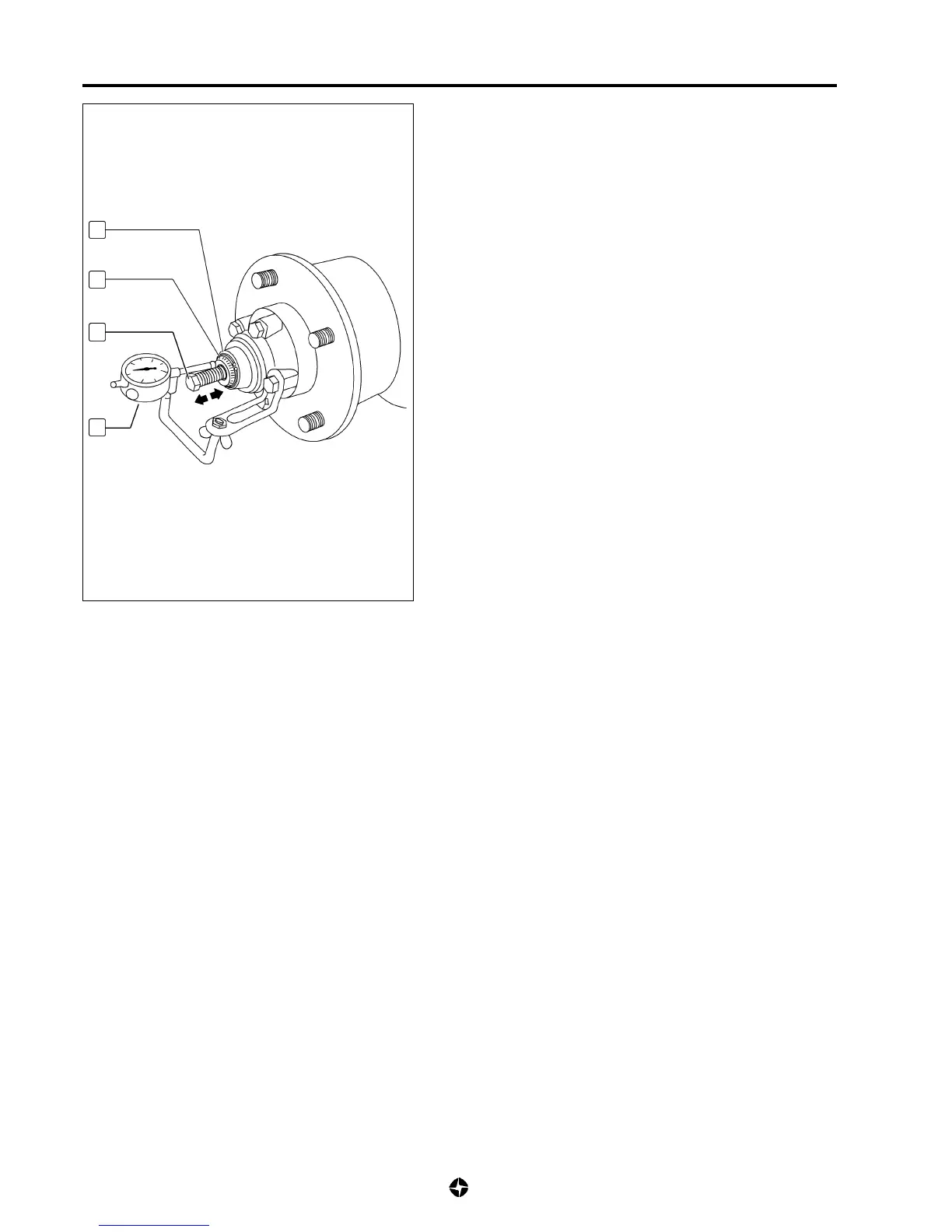

• Setup dial gauge (B) as shown: fix support to hub and
place dial gauge with the measuring tip touching the drive
shaft end.
• Measure the longitudinal play of the shaft axle which must
be in agreement with the specified value; otherwise,
substitute longitudinal adjusting washer (3).
Longitudinal play of the half axle:
0.12 ÷ 0.25 mm
• Install hub cap with a new O ring.
• Continue installation tie rod end,brake caliper support, brake
caliper and wheels, (see 4A-3).
