Santana PS-10 User Manual

ENGINE REPAIR 6A-25

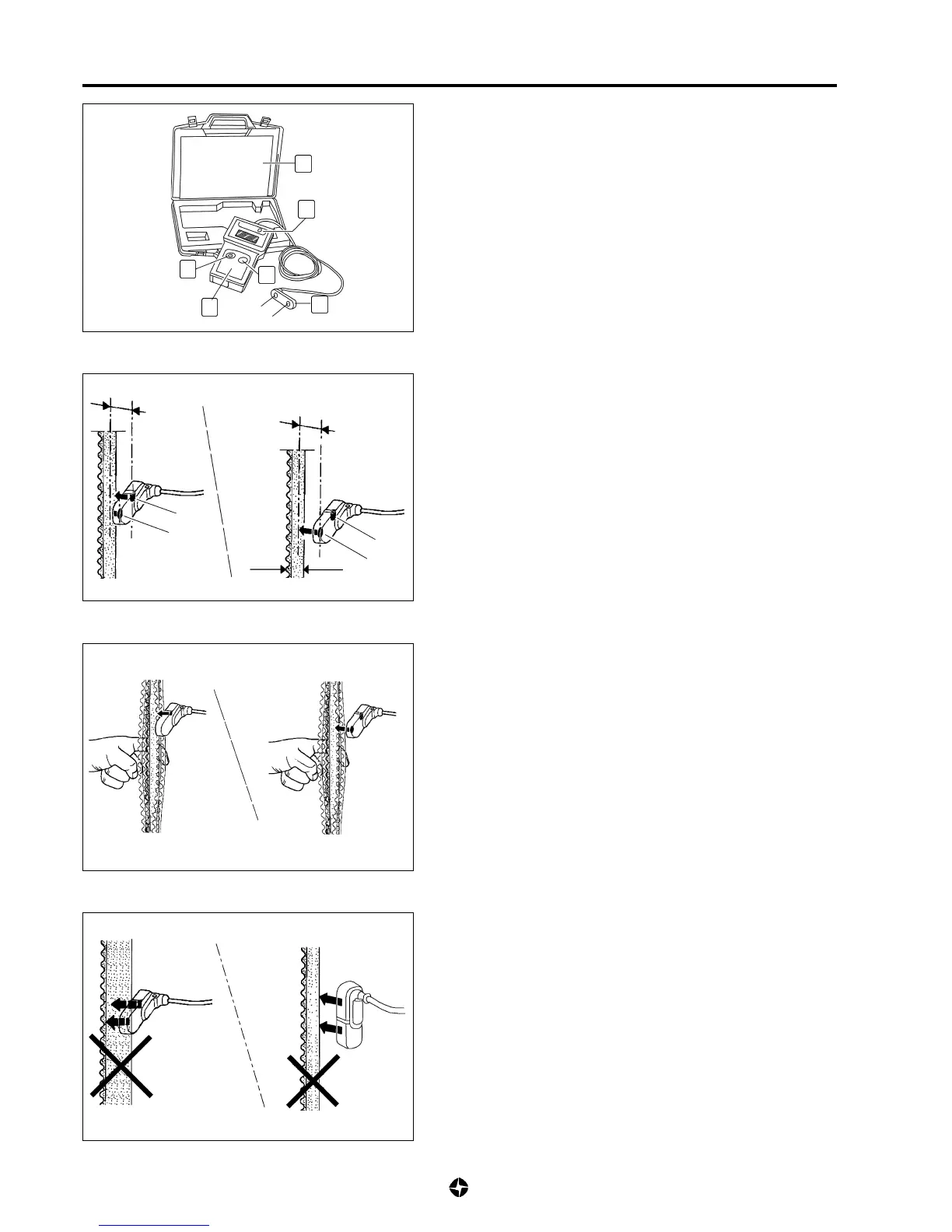

CHECKER USE
1) Switch on the checker (press button D) and bring reading
head (A) near the belt to be measured.
D
B
E
a
b
A
C
F
2) Place reading head at distance (X) from belt.
Measuring distance: (X)= 5 a 10 mm
3) Reading heads of sensors (a) or (b) can be used industictly,
but remember that the other reference sensor must be out
of measuring field.
NOTE:
Measure can be carried out either in face (1) or face
(2) of belt.
4) Take reading inducing vibrations on belt with one of your
fingers as shown in figure. The reading is correct when you
hear a "bip".
NOTE:
The two sensors must not be simultaneously in front of
the belt during the measurement.
x
x
b
b
a
a
1
2
