Santana PS-10 User Manual

ENGINE REPAIR 6A-75

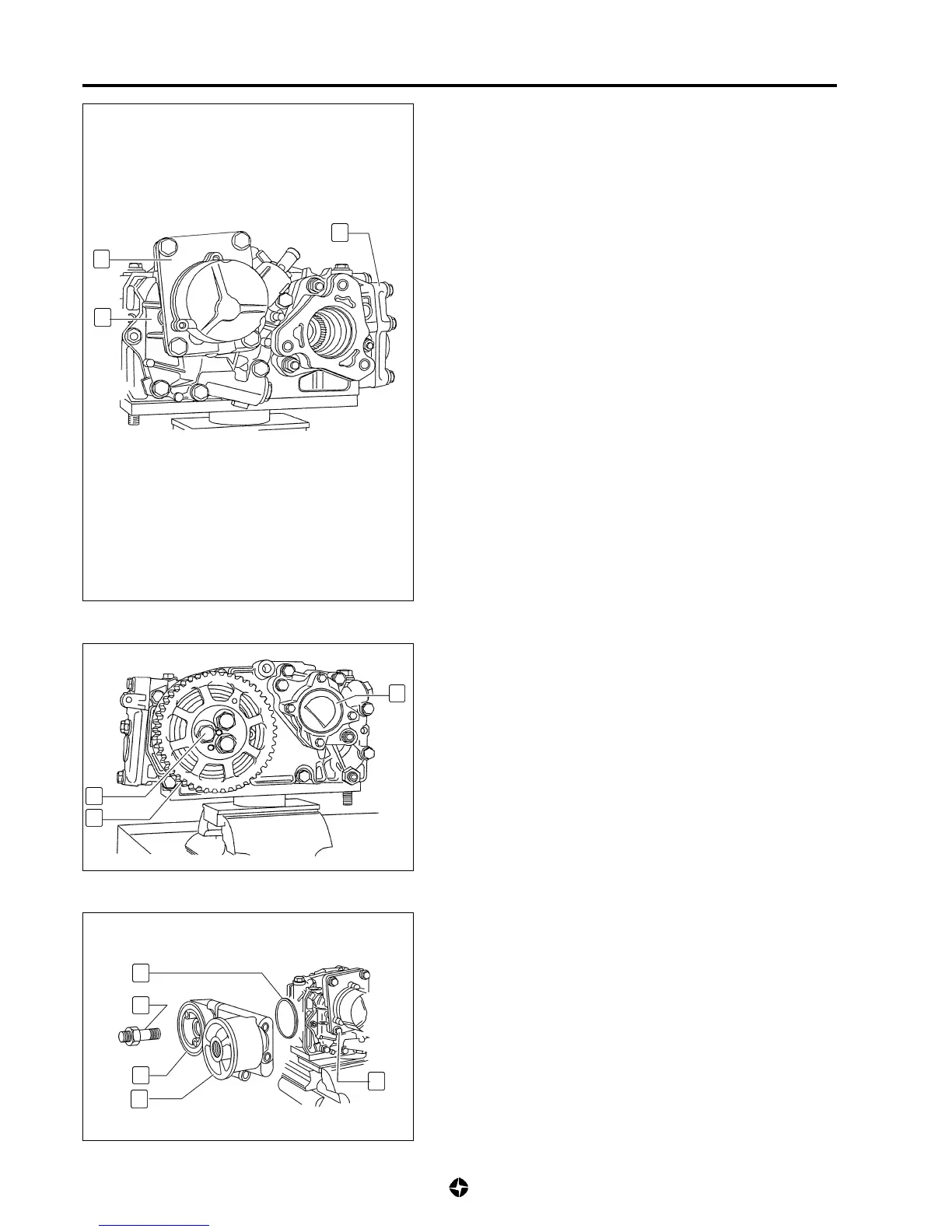

8) Install rear cover (11) and upper cover (12) with new
impermeabilizing gasket. Tighten screws to the specified
tightening torque.
Tightening torque:
• Screws back cover:
1,8 Kg-m (18 Nm)
• Screws upper cover:
1,8 Kg-m (18 Nm)
Auxiliary organs installation
9) Install vacuum pump (9) with dragging adaptor and
impermeabilizing gasket. Tighten the screws to the specified
tightening torque.
Tightening torque screws vacuum pump:
• M8: 1,8 Kg-m (18 Nm)
• M6: 1,2 Kg-m (12 Nm)
11
9
12
10) Fit driving gear (14), fix it with screws (13) and apply specified
tightening torque.
Tightening torque for screws fixing driving gear:
10 Kg-m (100 Nm)
11) Install hydraulic pump (15) with new gasket and tighten
screws to the specified tightening torque.
Tightening torque for screws fixing hydraulic pump:
3,5 Kg-m (35 Nm)
13
14
15
12) Fit support of oil filter (7) and of heat exchanger (8) with new
gasket (33) .
13) Fix supports with linkage adaptor (6) tightened to the specified
tightening torque.
Tightening torque linkage adaptor:
8 Kg-m (80 Nm)
NOTE:
Apply to thread of linking adaptor (6) recommended
sealant (ref. 790961).
33
6
7
8
5
