6A-78 ENGINE REPAIR
7)
MECHANICAL INJECTION ENGINESMECHANICAL INJECTION ENGINES
MECHANICAL INJECTION ENGINESMECHANICAL INJECTION ENGINES
MECHANICAL INJECTION ENGINES

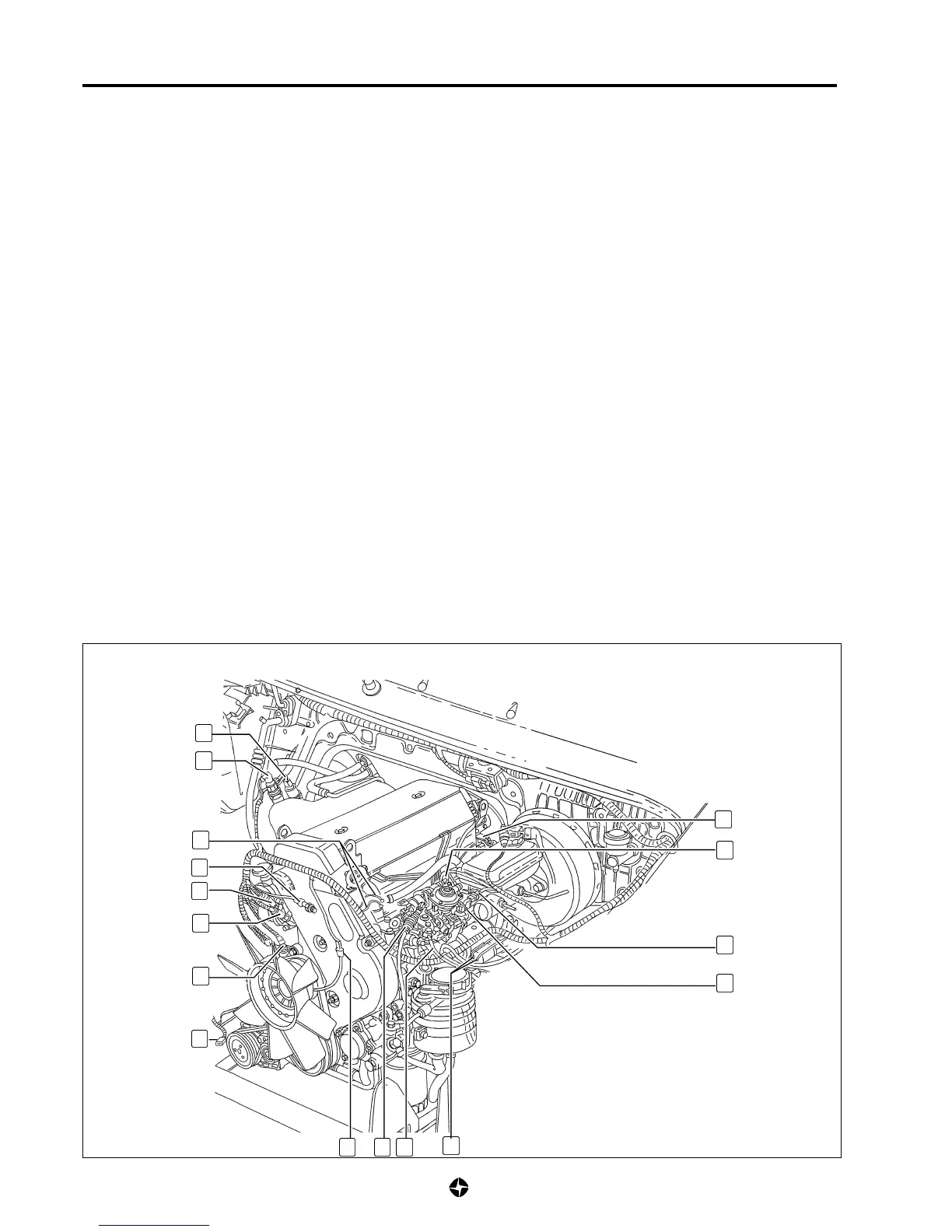

Disconnect electric leads from:
• Thermo electrovalve starter (9).
• Thermostarter spark plug (10).
• Generator (11).
• Switch of oil pressure device (12).
• Coolant temperature Indicator (13).
• Thermometric Switch for K.S.B. (14).
• Temperature Switch (15).
• Sensor of coolant temperature in radiator (16).
• Electromagnetic Pulley (17).
• Starting motor (20).
• Electrostop (22).
• K.S.B.(23).
• Rev. sensor of engine (24).
Disconnect accelerator cable (18) from the injecting pump
and from support to engine.
Disconnect fuel tubes (19) and (21).
NOTE:
In vehicles with air conditioning, disconnect wire of
evaporator and electromagnetic pulley connector of
compressor.
24
23
22
21
20
17 18 19
16
15
14
13
12
11
10
9
mechanical injection enginemechanical injection engine
mechanical injection enginemechanical injection engine
mechanical injection engine
