6A-82 ENGINE REPAIR

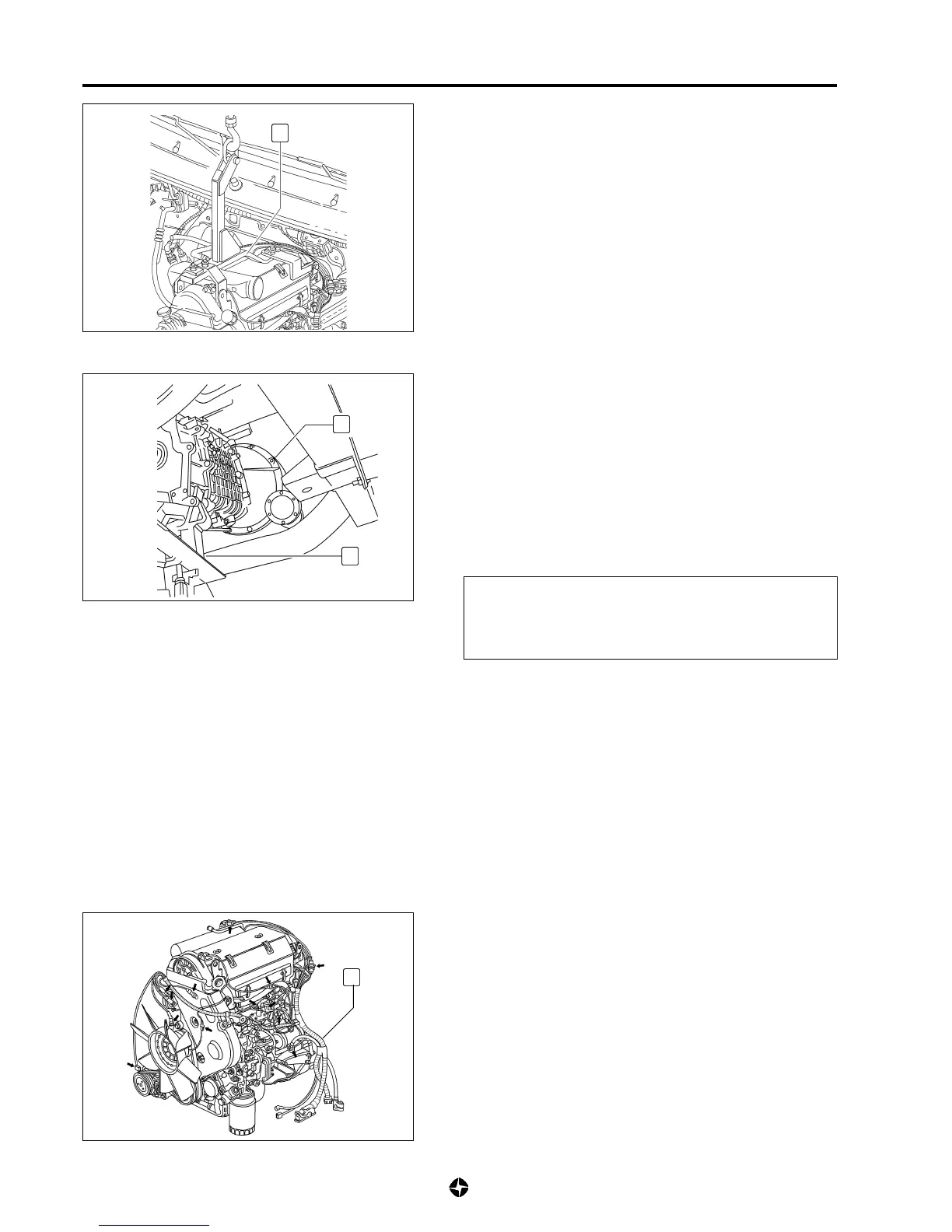

13) Connect to engine a lifting tool (A) ref. 790975; connect a
hydraulic lifter device and hang the engine as required to
extract the silentblocks at front seatings.
14) Lower engine as much as allowed and put a lifting table (B)
over the lower part of gear box, in order to share weight
between this table and the engine lifting device.
15) Dismantle screws and nuts (41) fixing the engine and the
gear box upwards and downwards.
16) Ensure there are no pieces connected to the motor interfering
in its extraction.
17) Lift engine and gear box using devices (A) and (B), till
reaching heights as those later involved in your hand work.
Displace engine forwards till separating it from the primary
shaft of speeds box and extract it.
CAUTION:
Be cautions when lifting engine avoidng catches
that damage the components.
A
41
B
18)
Engines common rail.Engines common rail.
Engines common rail.Engines common rail.
Engines common rail.
Disconnect indicated leads ( ) for its components and take
away wiring engine (50).
¨
50
