ENGINE FUEL AND EMISSION CONTROL SYSTEM 6C-49
Cleaning or replacement

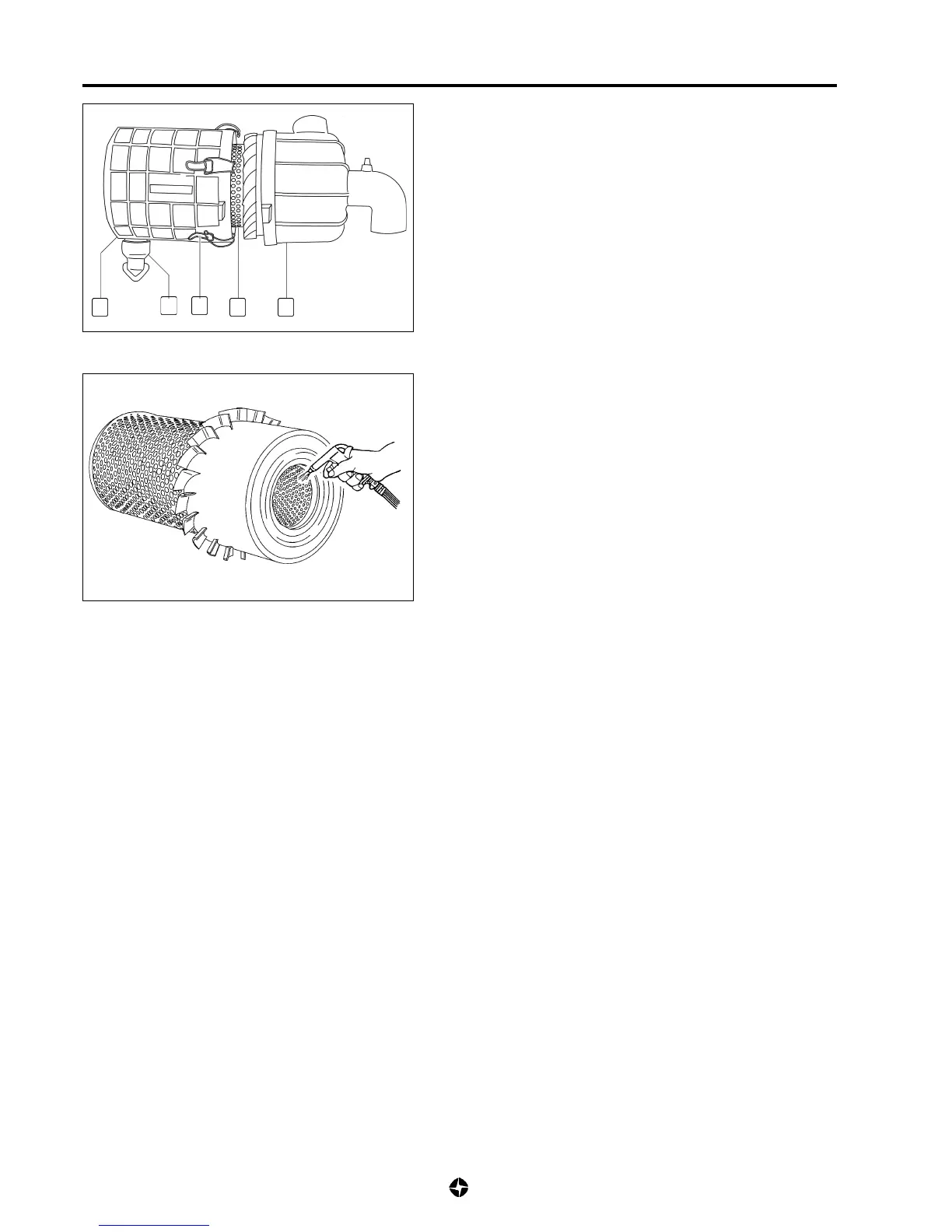

5) Open the clips (7), separate cover (9) from case (6) and remove
the filter element (8).
6) Thoroughly clean the cases (6) and (9) and make sure that
the bleeder valve (1) is not obstructed.
NOTE:
The air filter assembly cases must always be cleaned
when the filter element is cleaned or replaced.
6
1 7
8
9
7) If the filter element is to be re-used continue as follows:
• Check that there are no deformities or obstructions produced
by other elements that are not strictly speaking dust; if
this is not the case, replace the filter element.
• Eliminate the accumulated dust in the filter using
compressed air, blowing from the interior to the exterior,
as shown.
Installation
1) Filter element and its cases in reverse order to dismantling,
align the two cases using the positioning hinges.
2) Fit air filter assembly to the vehicle in reverse order to
dismantling. Check for good state of the turbocompressor
connecting hose and firmly tighten the clamps. If any defect
is seen in the hose or clamp, replace.
