HEATER AND VENTILATION 1A-9
CABLES AND CONTROL LEVERS

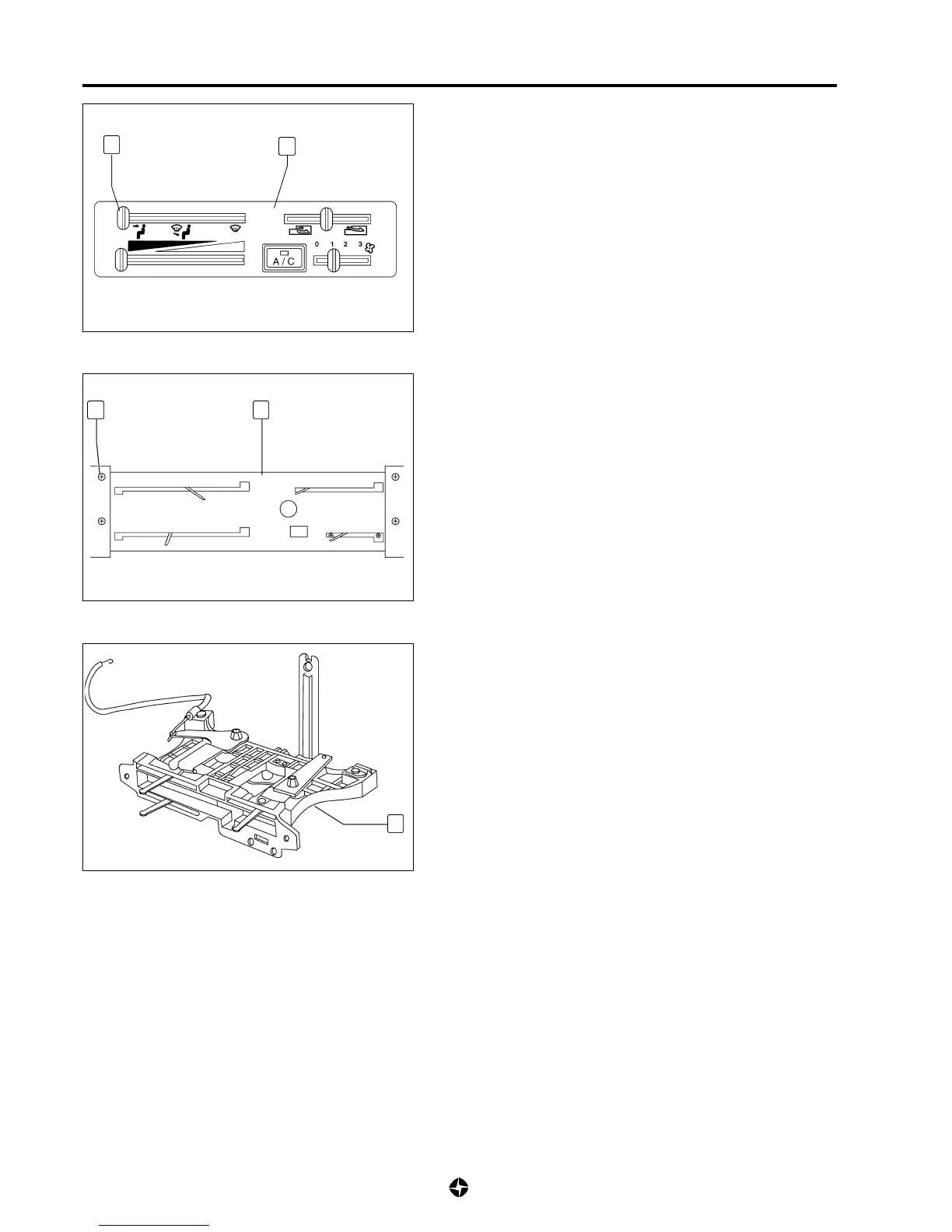

Removal
1) Remove control levers hub caps (1) front levers and withdraw
the control panel (2).
2) Remove fixing screws (3) on the glove box where levers unit
(4) is located.
3) Remove glove box (see 1A-10).
4) Remove control cables from their unions to:
• Ventilator
• Protector
• Heater
• Valve
5) Remove heating control levers unit (4).
NOTE:
To substitute control cables, disconnect from unions
and replace by another having the same replacement
reference number.
Instalation
1) Install a new lever unit set if required.
2) Install the other component reversing removal procedures,
noting to tighten to specified torque.
3) Proceed to adjust the control cables (see 1A-8).
