TRANSFER BOX 7D-7
8
9
10
7) Remove oil collector (8).
8) Take off rear oil seal(9).
Installation
NOTE:
If excessive wear and tear is found in the polished
zone of the control clamp, it must be replace by a new
one.
1) Fit the new rear oil seal (9) at the bottom of the housing,
with the closing lip facing the inside.
2) Fit a new oil collector (8)
3) Fit the rest of the components in reverse order to the removal,
noting the following points and torque:
• Apply grease to the seal closing lip.
Torque for the fixing of brake drum and control
clamp:
11,75 Kg-m (117,5 Nm)
Torque for fixing nuts of constant velocity transmission
clamp:
2,8 ÷ 3,5 Kg-m (28 ÷ 35 Nm)

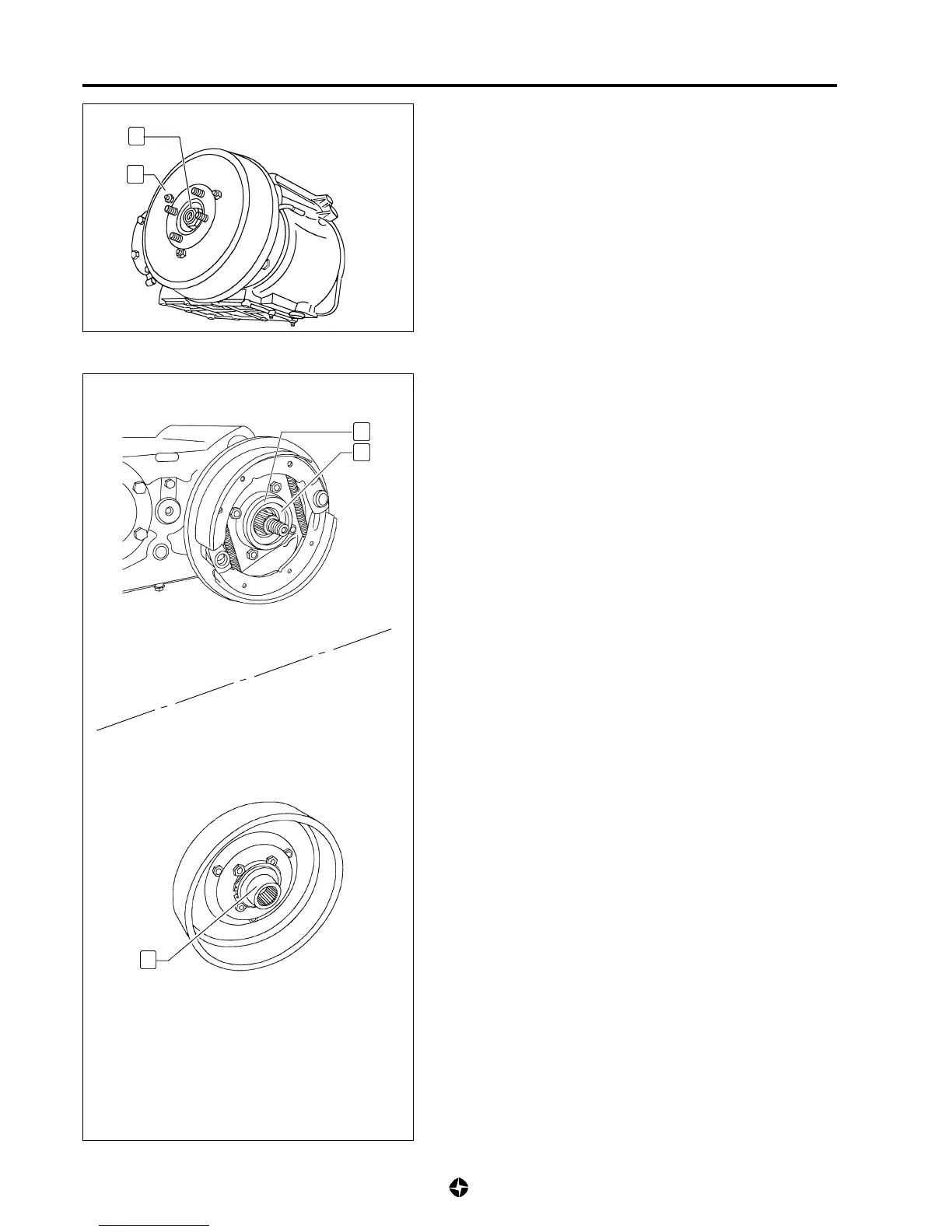

6) Remove brake drum(6) together with control clamp by
unscrewing the screw (7) and removing the washer.
NOTE:
Before removing the brake drum, release the
handbrake or, if necessary, loosen the tensing screw.
6
7
