TRANSFER BOX 7D-11
Installation
1) Fit all the components in reverse order to removal.

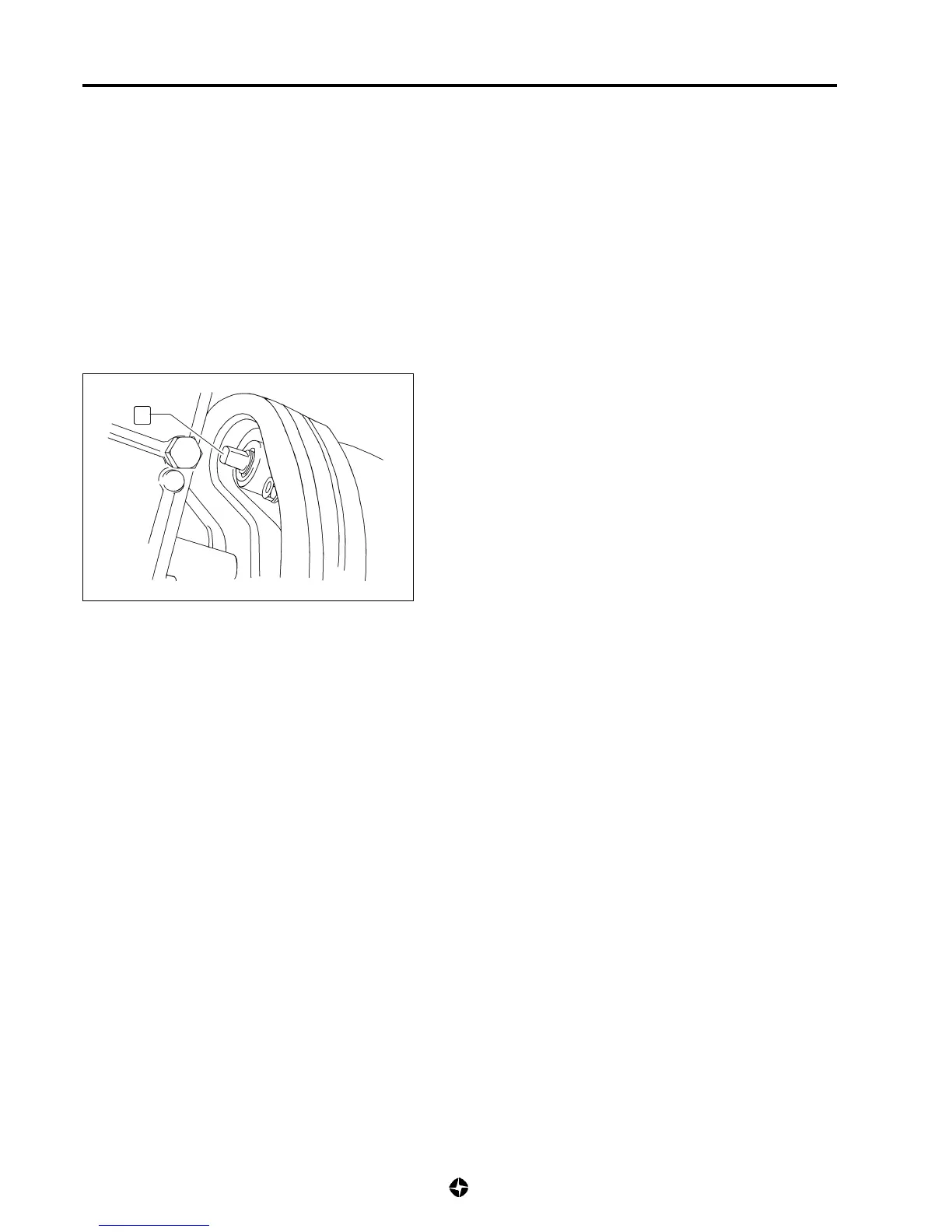

2) Once the shoes are fitted, turn screws (11) of the regulating
mechanism.
3) Connect drive rod.
4) Fit brake drum (see 7D-6).
5) Applying screw (13), bring shoes into line, making sure that
drum remains free.
6) Regulate parkingbrake driving rod using as reference the
lever ratchets (see 5-22).
Maximum efficiency of parkingbrake:
Point 7 of the ratchet
7) Fit rear propeller, tightening the flange screws of the constant
velocity to the specified torque.
Toque for screws of constant velocity propeller clamp:
2,8 ÷ 3,5 Kg-m (28 ÷ 35 Nm)
13
