BODY SERVICE 9-3

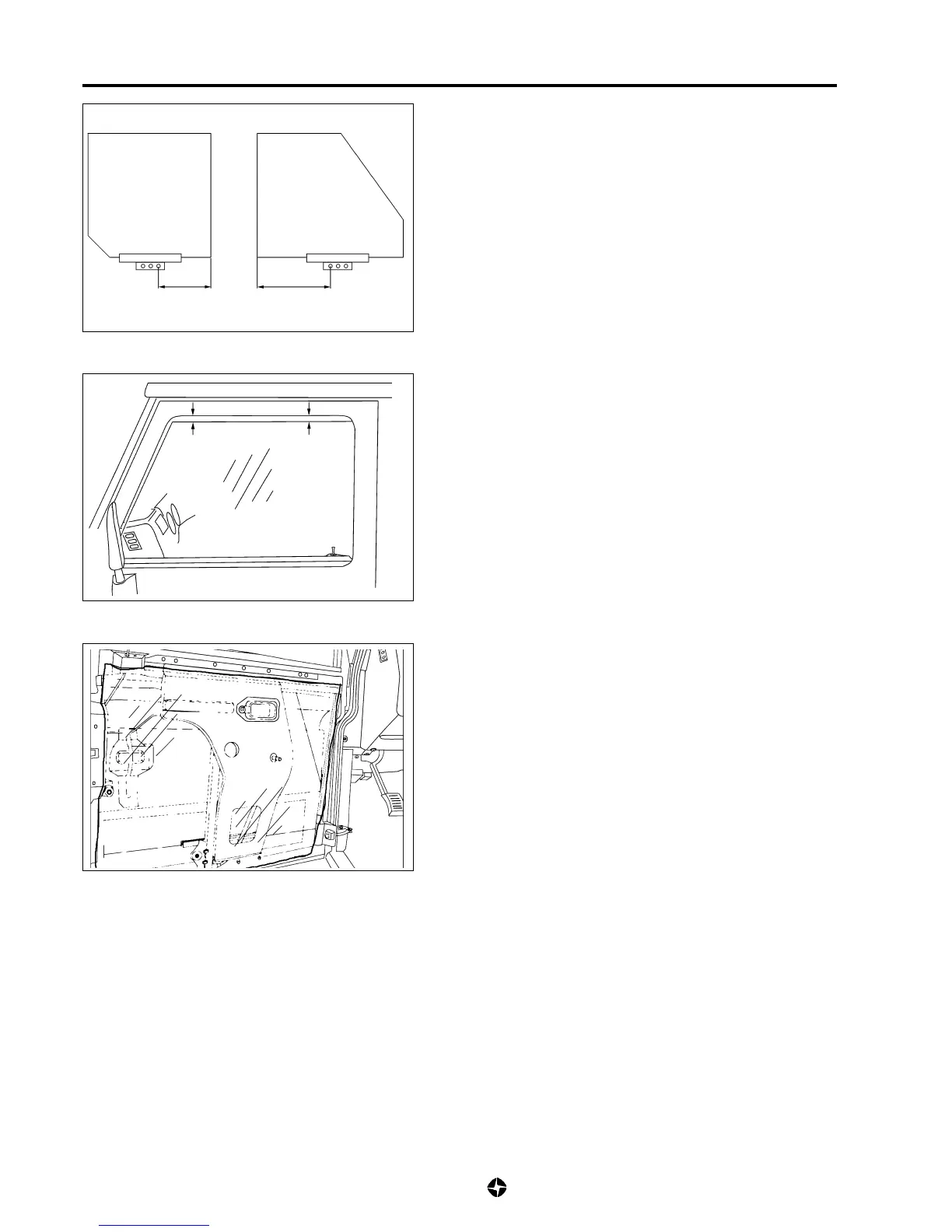

• Put glass in the lower guide as shown in the figure.

• If you do not manage lifting or lowering the glass easily, it

could be that the glass is inclined towards the door frame.

• Adjust the window run regulator in such a way that

dimensions (A) and (B) are the same.

244

285

A = B

• Secure sealing door cover with appropriate adhesive.
