Shimadzu GC-2010 Plus User Manual

12 Injection Port
12.5 Split/Splitless Injection System
131
GC-2010 Plus
12.5.5.3 PF menu
12.5.5.4 Setting a pressure program
Q Screen terminology
<1-ramp pressure program>
Q Program creation
<1-ramp pressure program>
PF menu Description
Reference
section
Del Line Deletes a line at the current cursor position.
――
Ins Line Inserts a line in line at the current cursor position.
――
PRINT Prints the pressure program to a Chromatopac.
――

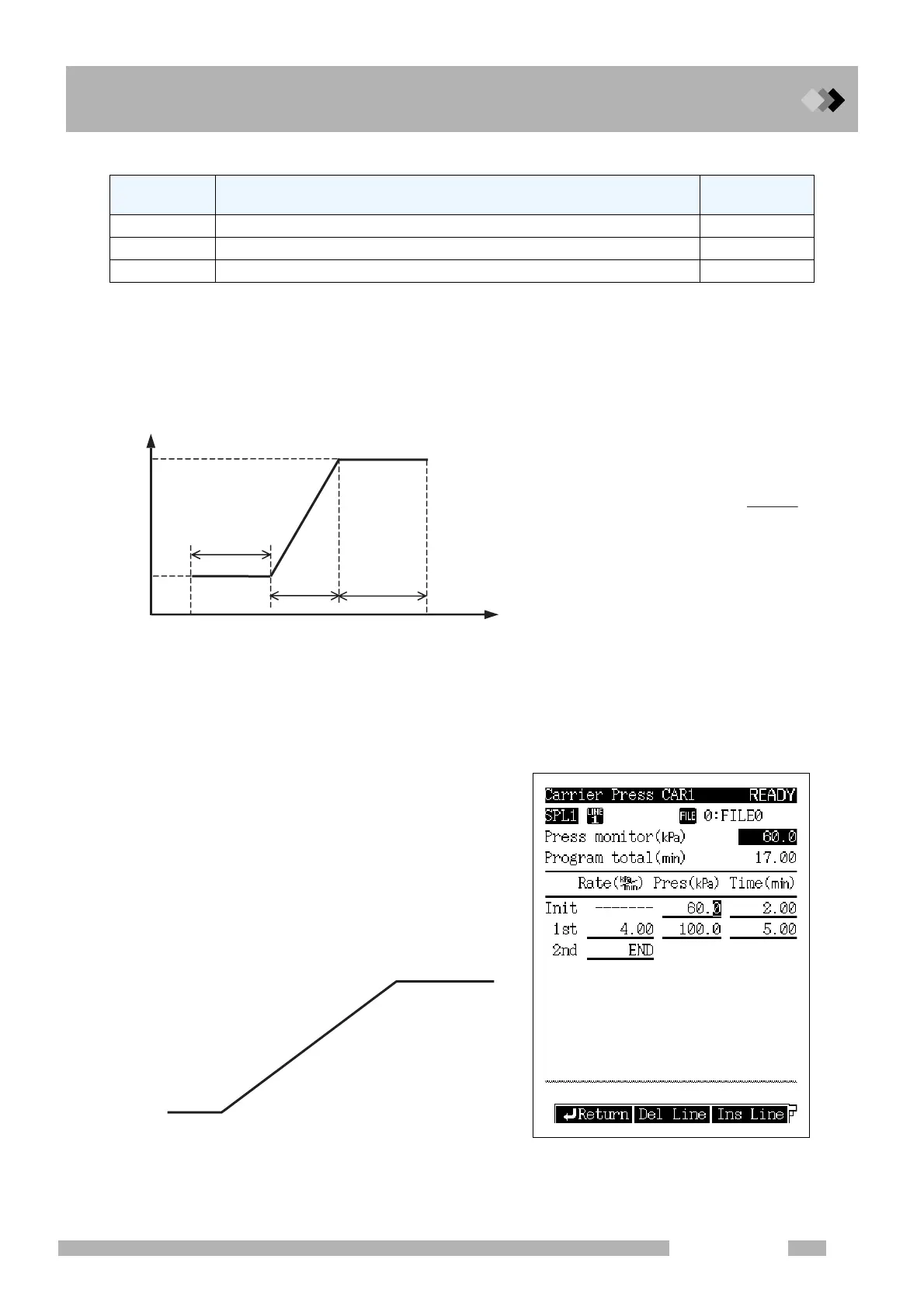

Fig. 12.5.8 Pressure program example
Initial pressure (PRSS)..... P1
Initial pressure hold time (TIME)...... a
Program rate (RATE).....
Final pressure (PRS)....... P2
Final pressure hold time (TIM)........
c
Pressure
P2
a
Program
starts.
Program
finishes.
Time
P2-P
1
b
b
c
60 kPa(2 min)
100 kPa(5 min)
4 kPa/min

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
