Shimadzu GC-2010 Plus User Manual

12 Injection Port
12.5 Split/Splitless Injection System
133
GC-2010 Plus
12.5.6.3 PF menu
12.5.6.4 Setting a flow rate program

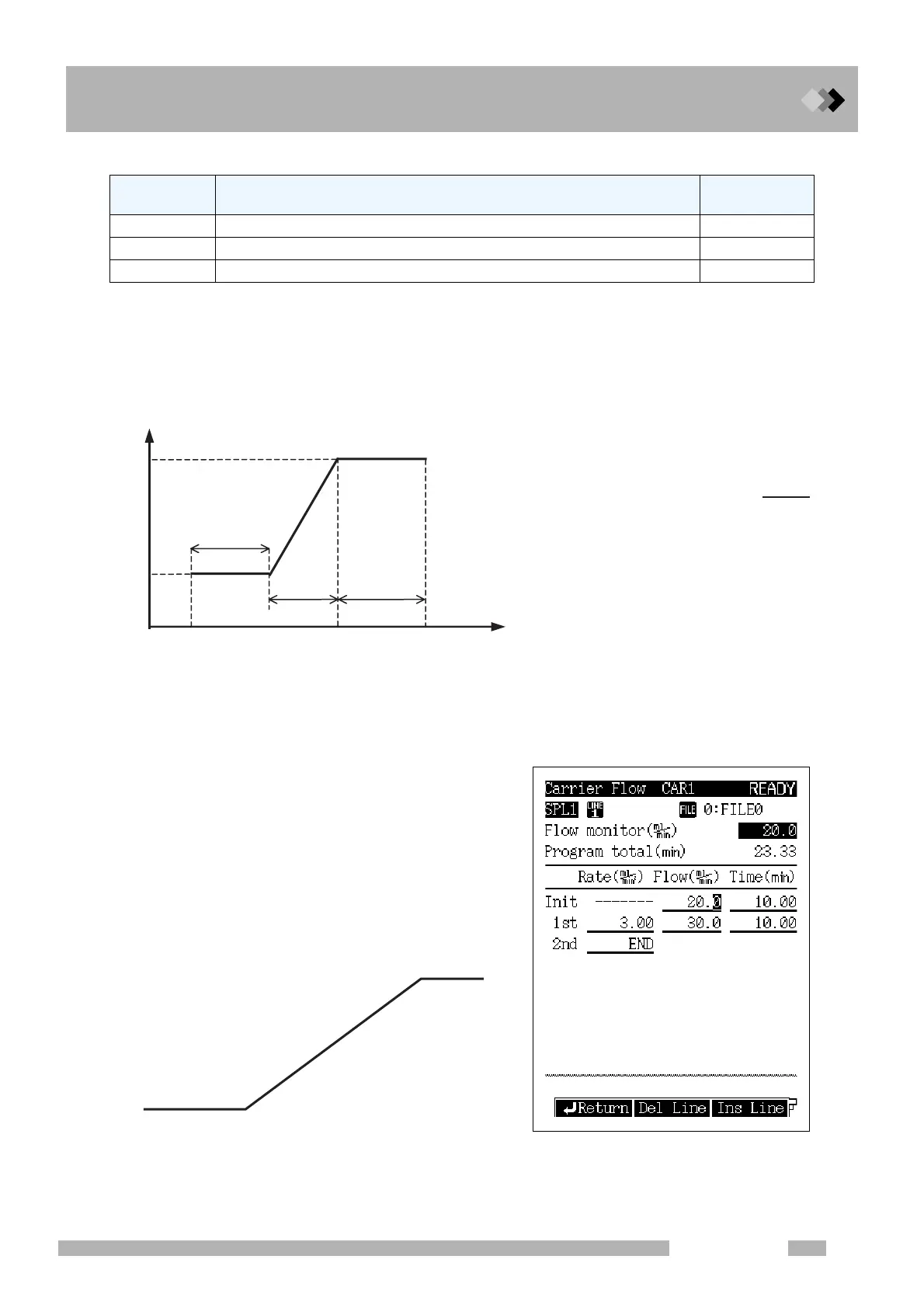

Q Screen terminology
<1-ramp flow rate program>
Q Program creation
<1-ramp flow rate program>
PF menu Description
Reference
section
Del Line Deletes a line at the current cursor position.
――
Ins Line Inserts a line in line at the current cursor position.
――
Print Prints the flow rate program to a hromatopac.
――
Fig. 12.5.10 Flow rate program example
Initial flow rate (FLOW).... F1
Initial flow rate hold time (TIME)...... a
Program rate (RATE)......
Final flow rate (FLW)........ F2
Final flow rate hold time (TIM).........
c
Flow rate
F2
F1
a
c
b
Program
starts.
Program
finishes.
Time
F2-F
1
b
20 ml/min(10 min)
30 ml/min(5 min)
3 ml/min
2

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
