Shimadzu GC-2010 Plus User Manual

2 Installation
2.6 Gas supply plumbing
23
GC-2010 Plus
Q Supply gas tubing
There are two types connections in the Gas Chromatograph: Type M and Type G. Type M
connections are located at the main tubing connections in the instrument interior and exte-
rior. The metal fittings contact directly.
Type G connectors, which are used in high temperature areas, are connected by tightening
three to five aluminum gaskets between the fittings.

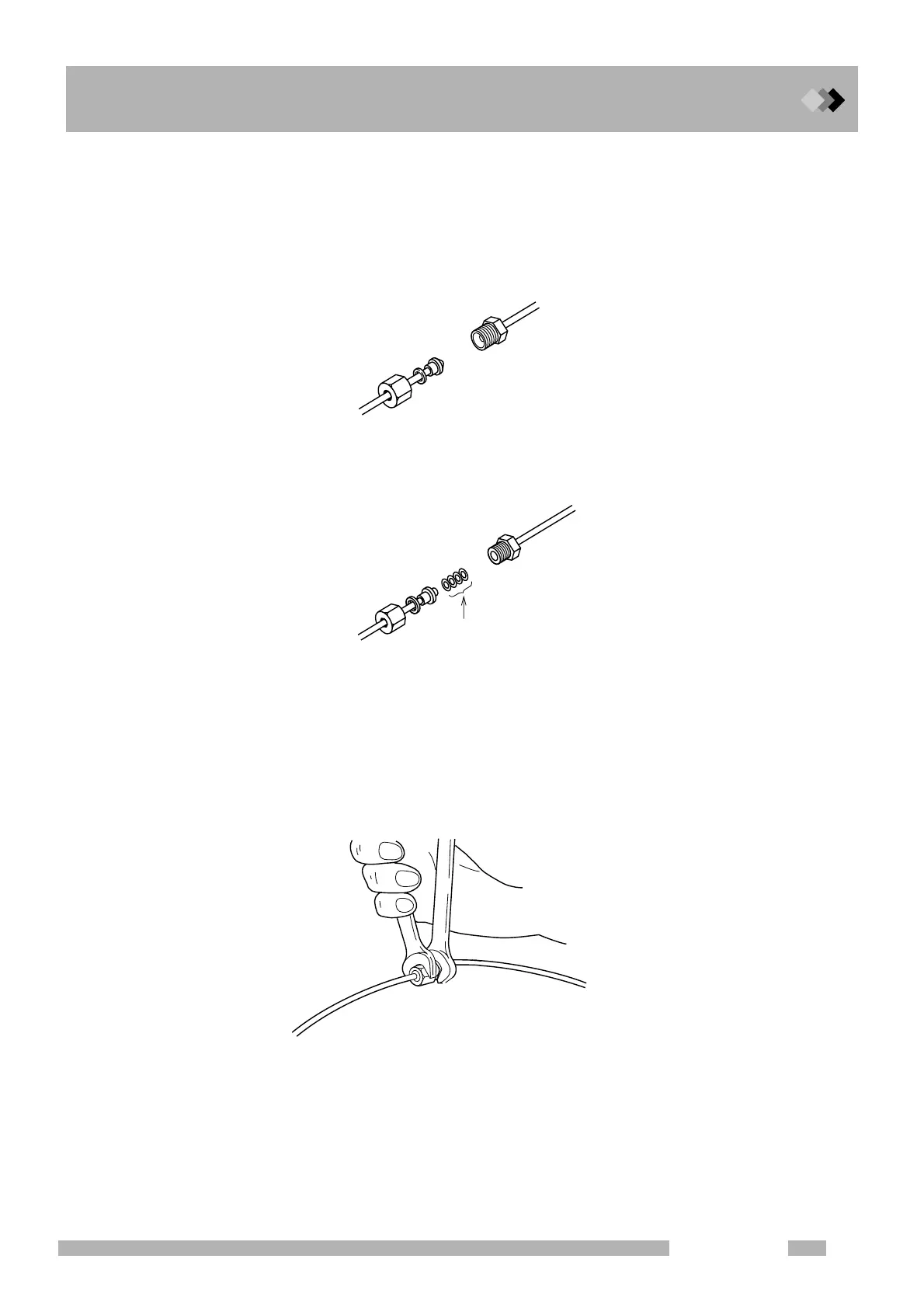

Fig. 2.6.1 Joining Type M fittings
Fig. 2.6.2 Joining Type G fittings
Tightening the tubing connections
Too ls
2 wrenches 10×12 (standard accessory)
Use the 12 mm wrench for Type M connections and the 10 mm wrench for type G
connections.
Fig. 2.6.3 Tightening the joints
MF fitting
MM fitting
GF fitting
Alminum gaskets (3-5 pcs)
GM fitting

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
