Shimadzu GC-2010 Plus User Manual

2 Installation
2.6 Gas supply plumbing
25
GC-2010 Plus
Q Gas chromatograph tubing connections
Connections are provided on the rear panel of the unit for connecting external tubing.
They are labeled as follows.
Carrier gas ..................... CARRIER
Makeup gas ................... MAKE UP
Hydrogen ....................... HYDROGEN
Air .................................. AIR
<Ex 1> When Carrier gas and Makeup gas are identical

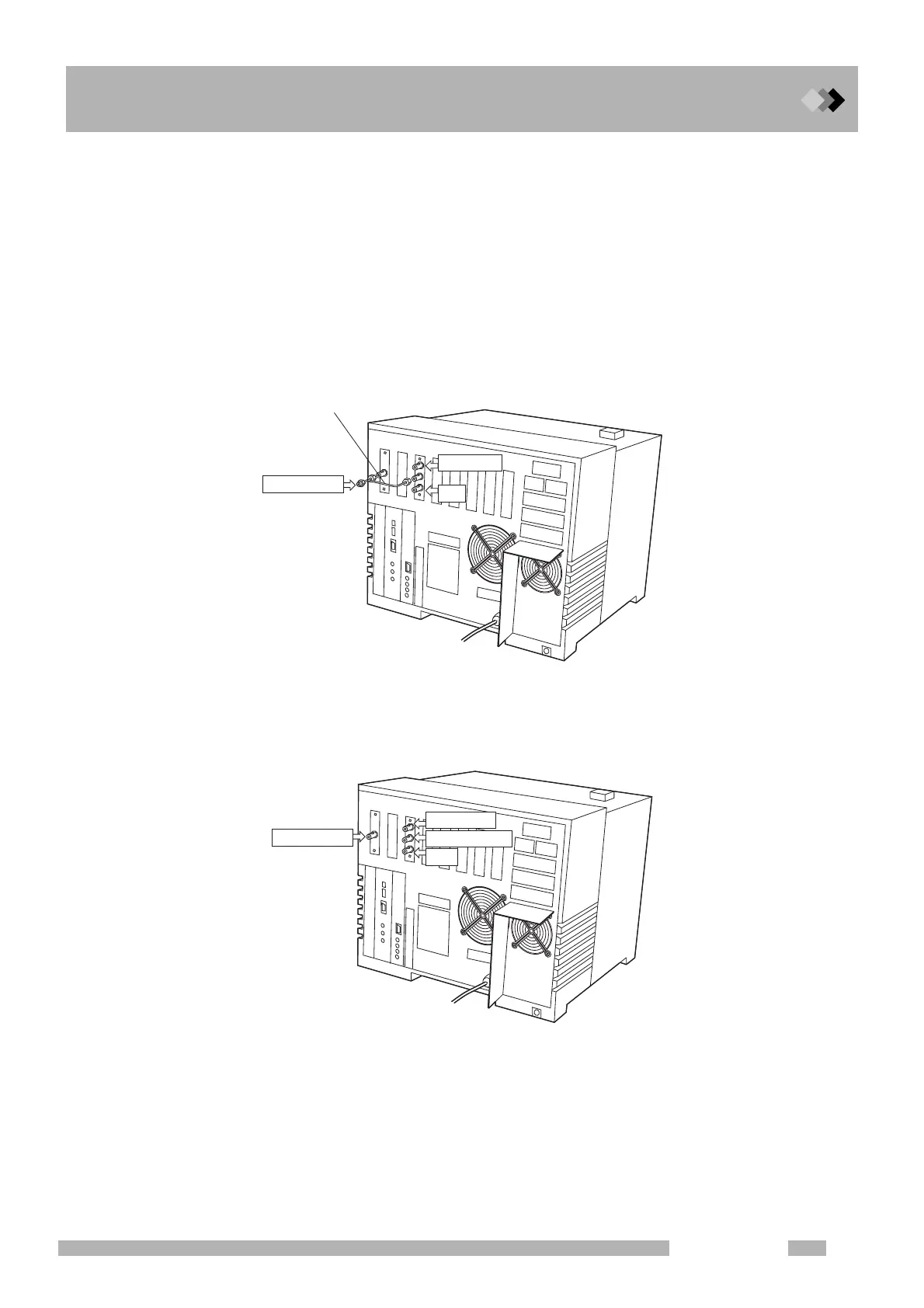

Fig. 2.6.6 When Carrier gas and Makeup gas are identical
<Ex 2> When Carrier gas and Makeup gas are different
Fig. 2.6.7 When Carrier gas and Makeup gas are different
Carrier gas
Hydrogen
Air
Branch tube
(standard accessory)
Carrier gas
Hydrogen
Air
Make-up gas

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
