Shimadzu GC-2010 Plus User Manual

3 AFC, APC
3.4 AFC and APC control
41
GC-2010 Plus

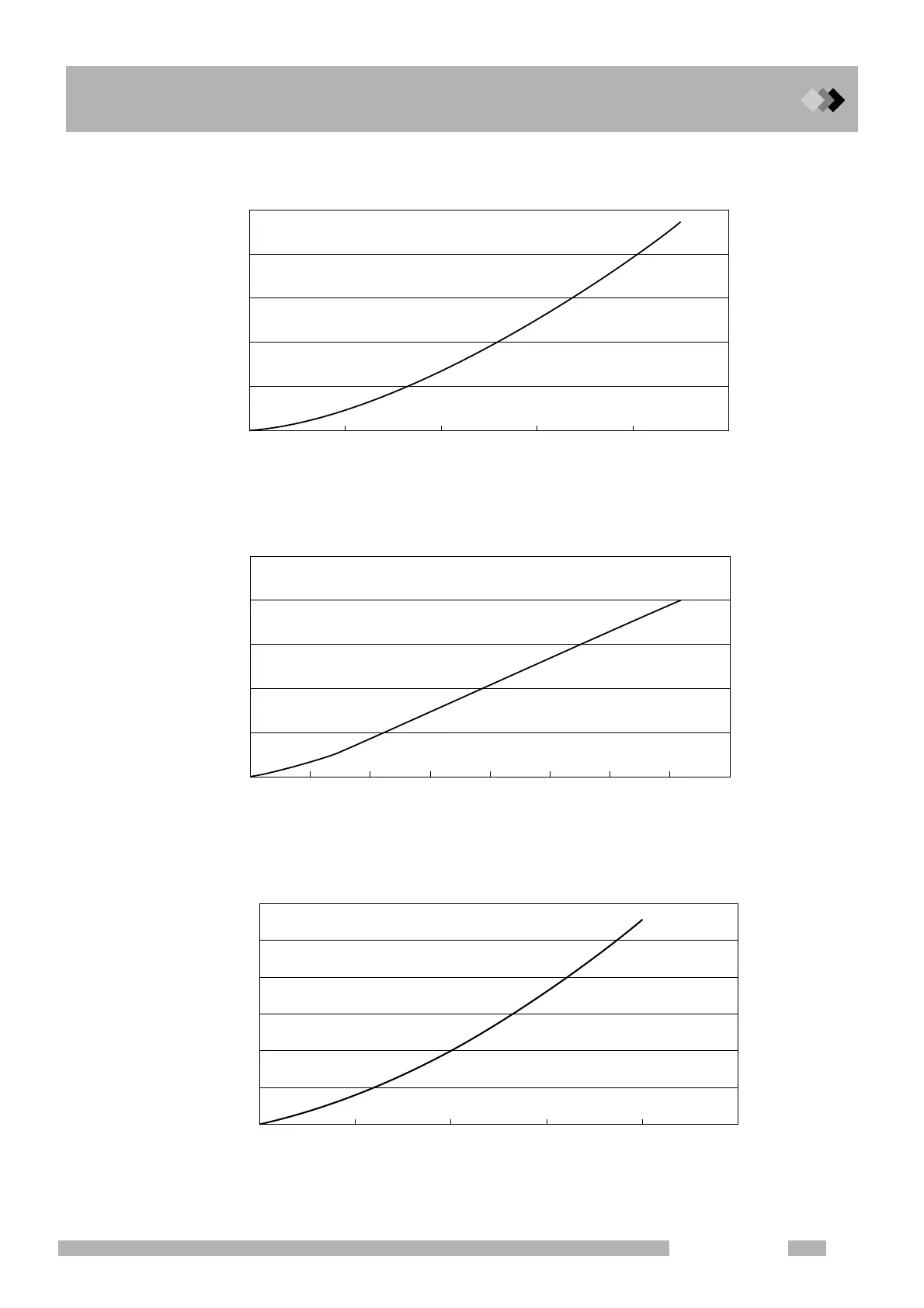

Fig. 3.4.6
Fig. 3.4.7
Fig. 3.4.8
H2
Pressure (kPa)
Flow rate (ml/min)
0 100 200 300 400 500
0
50
100
150
200
250
Makeup gas (FID)
Pressure (kPa)
Flow rate (ml/min)
0 100 200 300 40050 150 250 350
0
50
100
150
200
250
Makeup gas (TCD)
Pressure (kPa)
Flow rate (ml/min)
0 100 200 300 400 500
0
20
40
60
80
100
120

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
