Topcon Pocket-3D - Page 167

Alignment
P/N 7010-0628
3-57

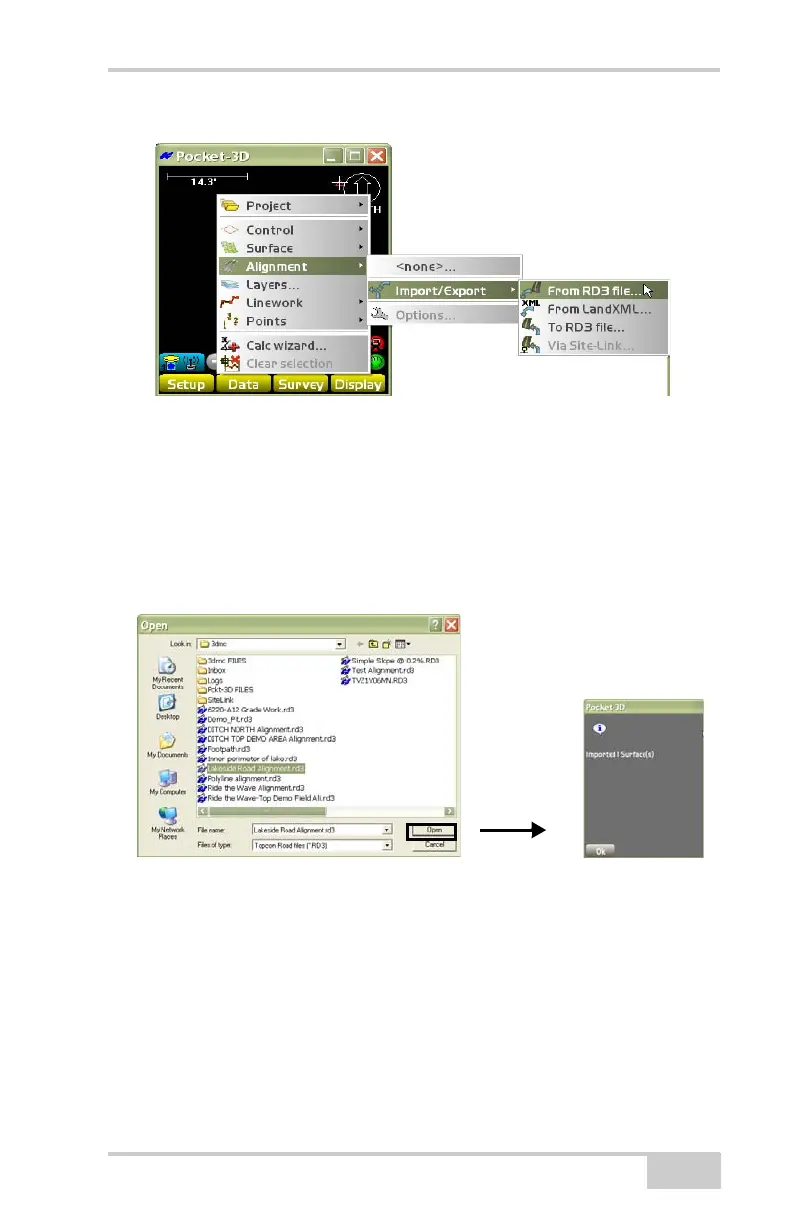

Figure 3-81. Import from a Topcon Road File
The file explorer dialog box displays (Figure 3-82).
• Choose an RD3 file from the drop-down list in the Look in field.
• Press Open
A confirmation dialog box displays to confirm that the file was
successfully imported.
Figure 3-82. Import Topcon Road File from Explorer Dialog Box
