Stake-out
P/N 7010-0628
4-43

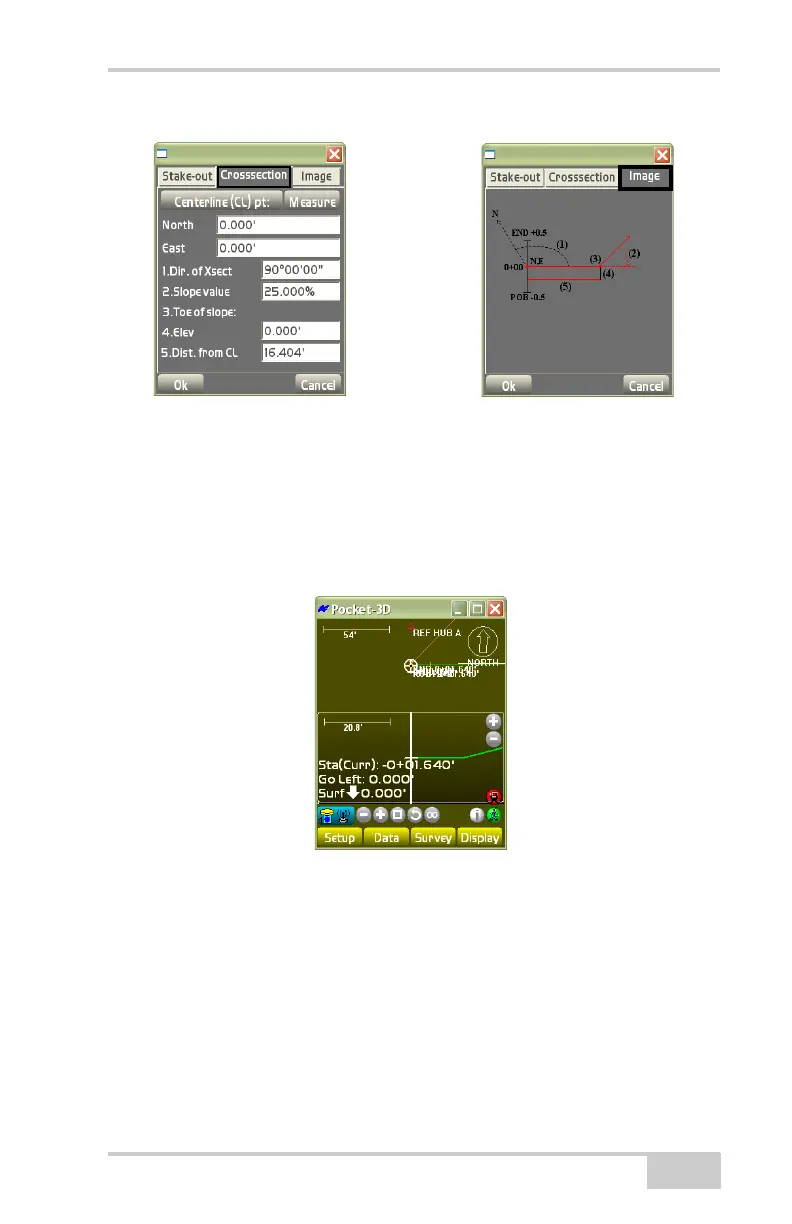

Figure 4-66. Enter Parameters for Cross-section Slope
The corresponding Image tab illustrates the measurements described
on the Crossection tab.
The section view on the main screen displays the cut/fill value from
the current elevation to the side-slope and the current station
(
Figure 4-67).
Figure 4-67. Side Slopes Screen
See the following sections for details on other menu selections during
a side slope/cross section slope stake-out.
• “Measure Stake 1” on page 4-49
• “Sideslope Options” on page 4-53
• “V. Surface Offset” on page 4-54
• “Options” on page 4-55
