GPS Applications
P/N 7010-0628
2-9
• Connection (Pocket-3D) – select the connection to the receiver.

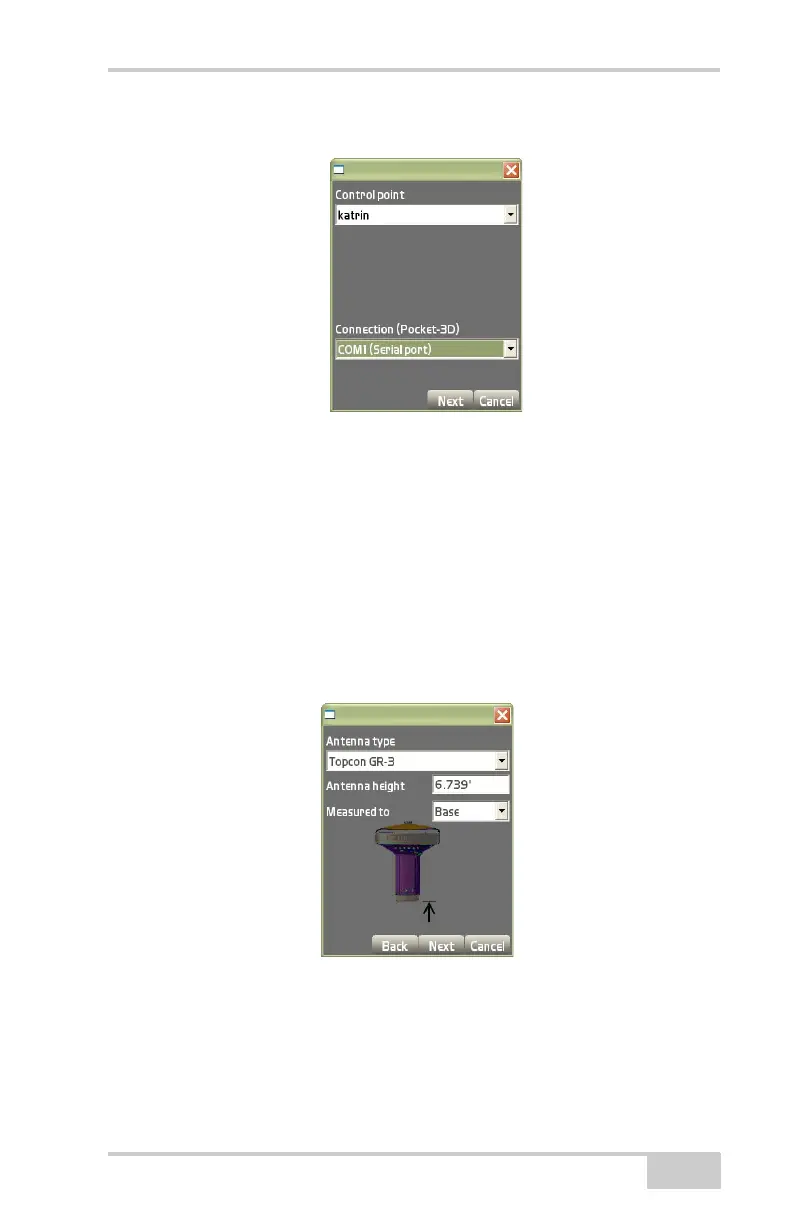

Figure 2-13. Base Station Configuration
On the antenna setup dialog box (Figure 2-14), set the following
parameters and press Ok:
• Antenna type – select the type of antenna.
• Antenna height – enter the antenna height of the GPS+ antenna.
• Measured to – enter where on the GPS+ antenna the antenna
height was measured.
• Units – select either meters, feet, inches, or centimeters.
Figure 2-14. Antenna Setup – Base Station
