wolke m600 basic - Fig. 7_132: Barcode - Embedded Fields; Fig. 7_133: Determining Height of Barcode; Fig. 7_134: Barcode

To Next Page

To Previous Page

Label

82 Manual m600 basic 2.6_01

Now, the displayed embedded fields are available:

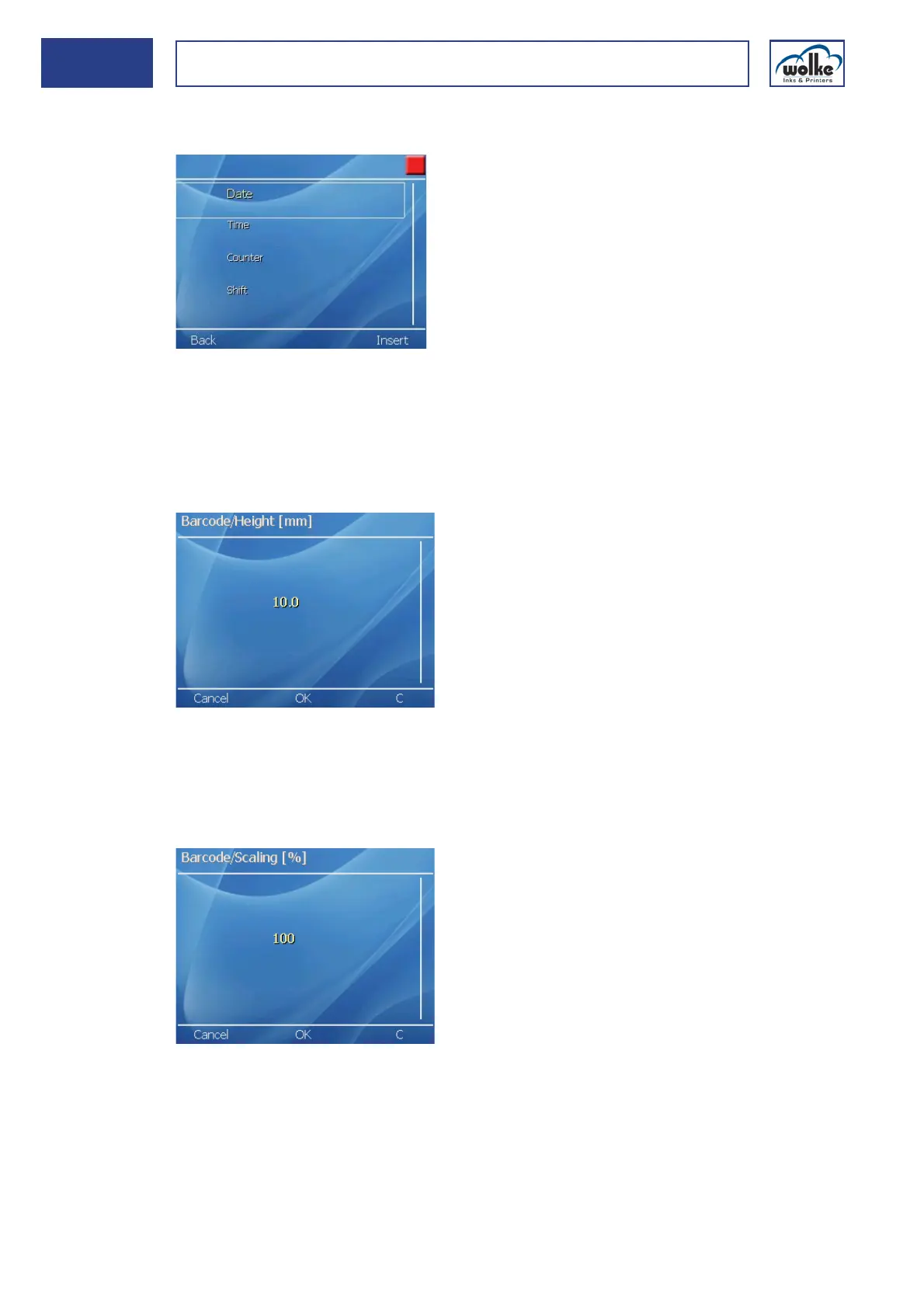

Fig. 7_132: Barcode – Embedded fields

The displayed fields are processed as under Chapter 7.3.

EAN13/EAN8

"Height" is for setting the print height of the barcode.

Fig. 7_133: Determining height of barcode

The "Scaling" function is for expanding or compressing the barcode so that

it can be adjusted to meet requirements.

Fig. 7_134: Barcode – Scaling

Height [mm]



Scaling


