Installation

26 Manual m600 basic 2.6_01

Installation by

means of the

mounting

system

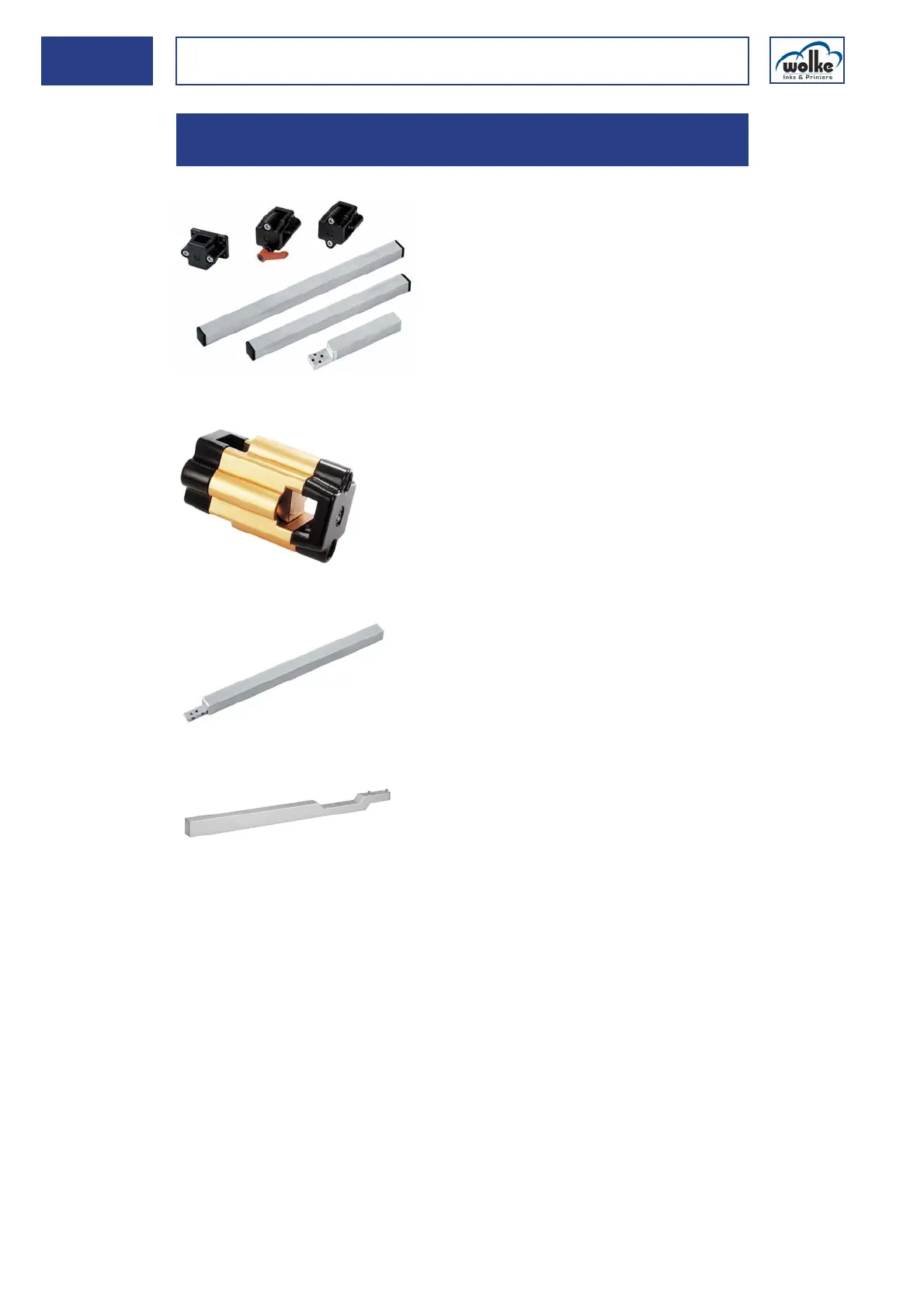

Fig. 4_41: Mounting system for 1-head mounting of a blue print head

Fig. 4_42: Adjusting unit for multi-head mounting

Fig. 4_43: Mounting adapter for green, red and gold colored print heads

Fig. 4_44: Mounting adapter for gold colored print heads

4.6 Installation by means of the mounting system

(optional)

The mounting system allows fast and

simple print head mounting.

Suitable for the mounting system for

multi-head mounting (all print head

versions). The adjusting unit allows

the print heads to be finely adjusted

for perfect print images.

The mounting adapter for assembly

of a red, green or golden print head

is available in lengths of 400/

600 mm.

The mounting adapter for assembly

of a golden print head is available in

a length of 400 mm.
