wolke m600 basic - Installation Parameter Configuration Options

To Next Page

To Previous Page

Settings

Manual m600 basic 2.6_01 49

System

configuration

Basic system settings - Configuration with the system and production line,

valid for all labels.

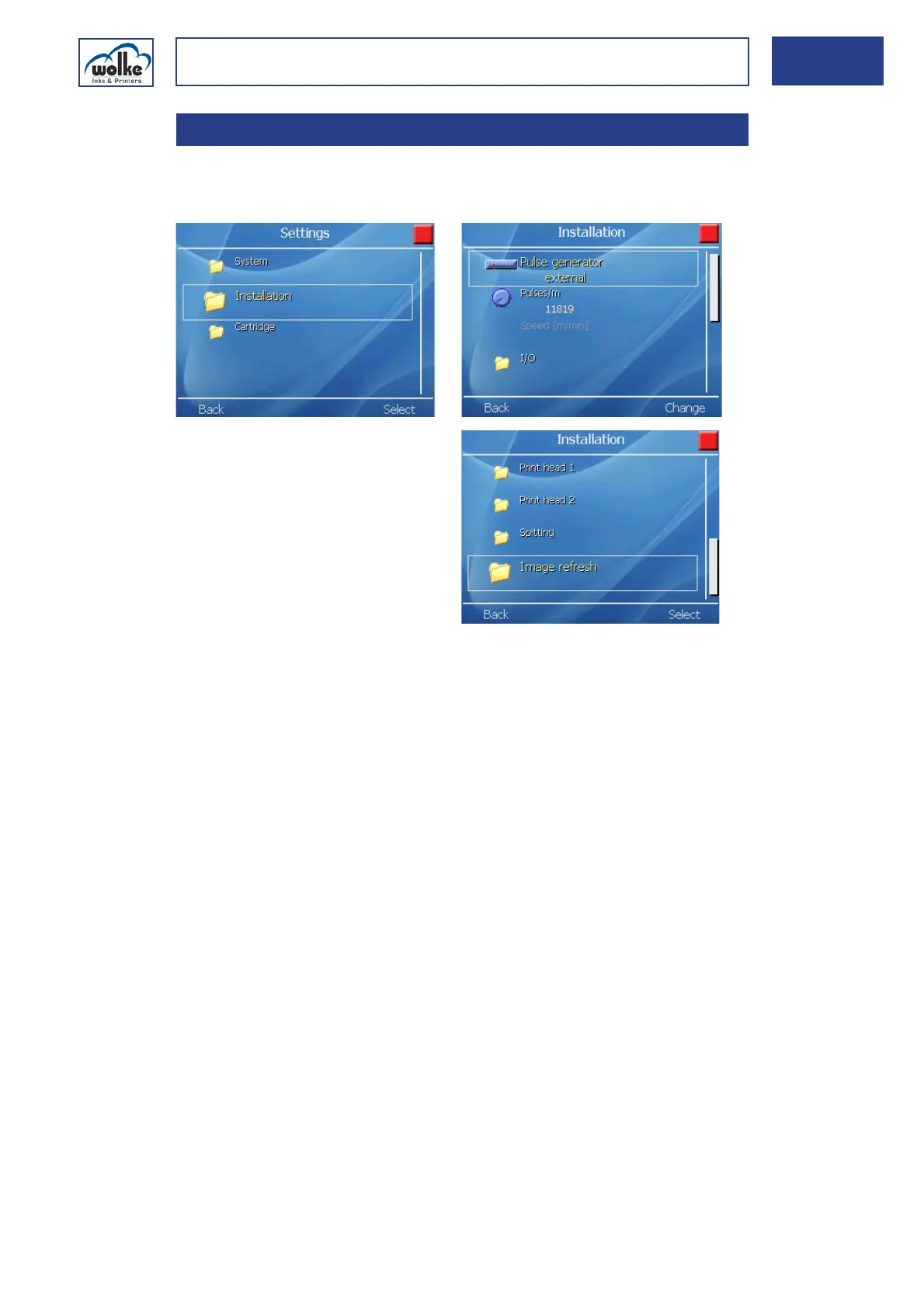

Fig. 6_80: Settings > Installation

Pulse generator:

Selection of an external or internal pulse generator (see Chapter 6.2.1).

Pulses/m:

Adjustment of pulses/m if an external pulse generator is used (see Chap-

ter 6.2.1).

Speed [m/min]:

Manual entry of speed using the internal pulse generator (see Chapter

6.2.1).

I/O:

Assignment of various functions to the inputs (see Chapter 6.2.2).

Print head1/2:

Communicate activation of sensor for head1 or head2, text position, mir-

roring, presence of a sensor and sensor distance (see Chapter 8.1.1).

Spitting:

Activation/deactivation of the automatic spitting process (see Chapter

6.2.5)
