Y position

The Y position determines the vertical position of the field.

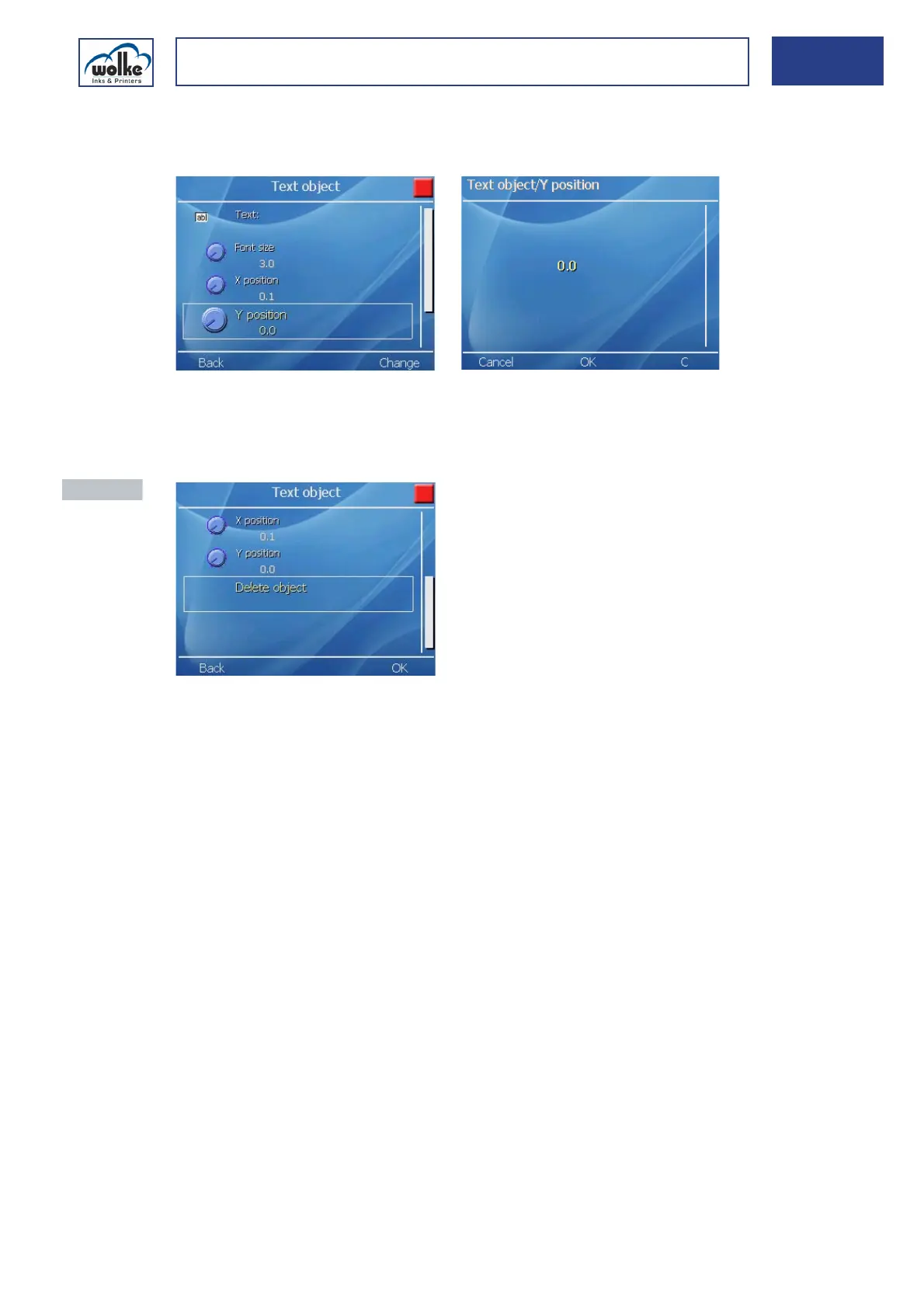

Fig. 7_123: Text object – Definition Y position

TextDelete object

This menu is for deleting the object.

Fig. 7_124: Delete text object

You can add further objects via the folder "New object".

Actuate the

menu button

"Yes" to ac-

knowledge de-

leting of the

object.

To exit the

menu, actuate

the menu but-

ton "No".
