Label

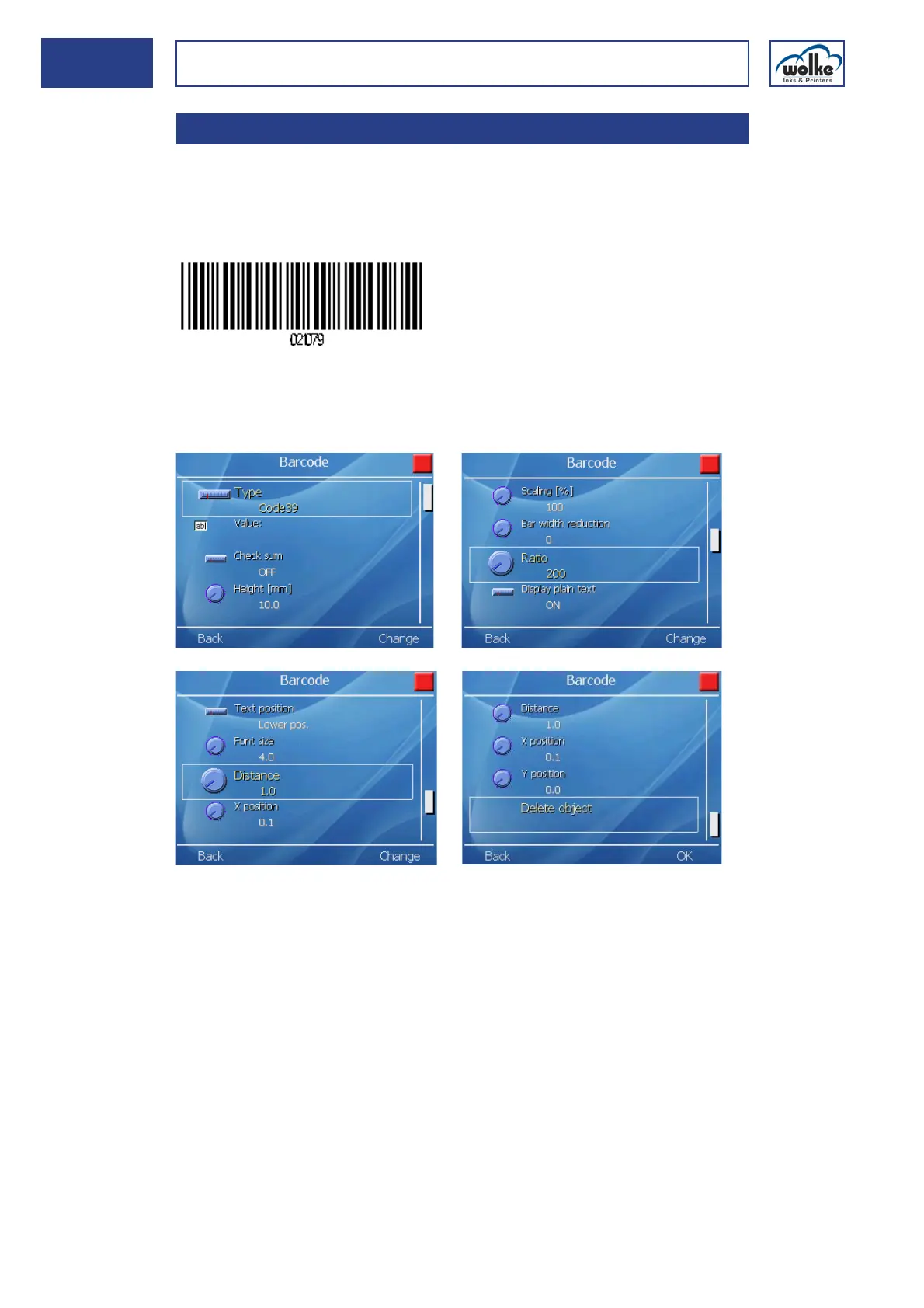

90 Manual m600 basic 2.6_01

Code39 Code 39 is an alphanumerical barcode which allows the numbers 0-9, 26

letters (without umlauts) and 7 special characters to be presented.

Example print:

Fig. 7_146: Example print Code39

Given that the menu fields for Code39 are the same as the fields for the

previous barcodes, please refer to the previous pages for explanations.

Fig. 7_147: Barcode – Type Code39

7.3.3.5 Code39
