Installation

28 Manual m600 basic 2.6_01

Installation by

means of the

parallelogram

Many products and packaging materials (e.g. wrapping) are slightly un-

even/cambered or are transported on the conveyor belt in a range of dif-

ferent positions.

In these cases the parallelogram with measuring wheel or deflector de-

scribed under accessories (Chapter 14) should be used. This is to ensure

a constant optimum print result for such applications.

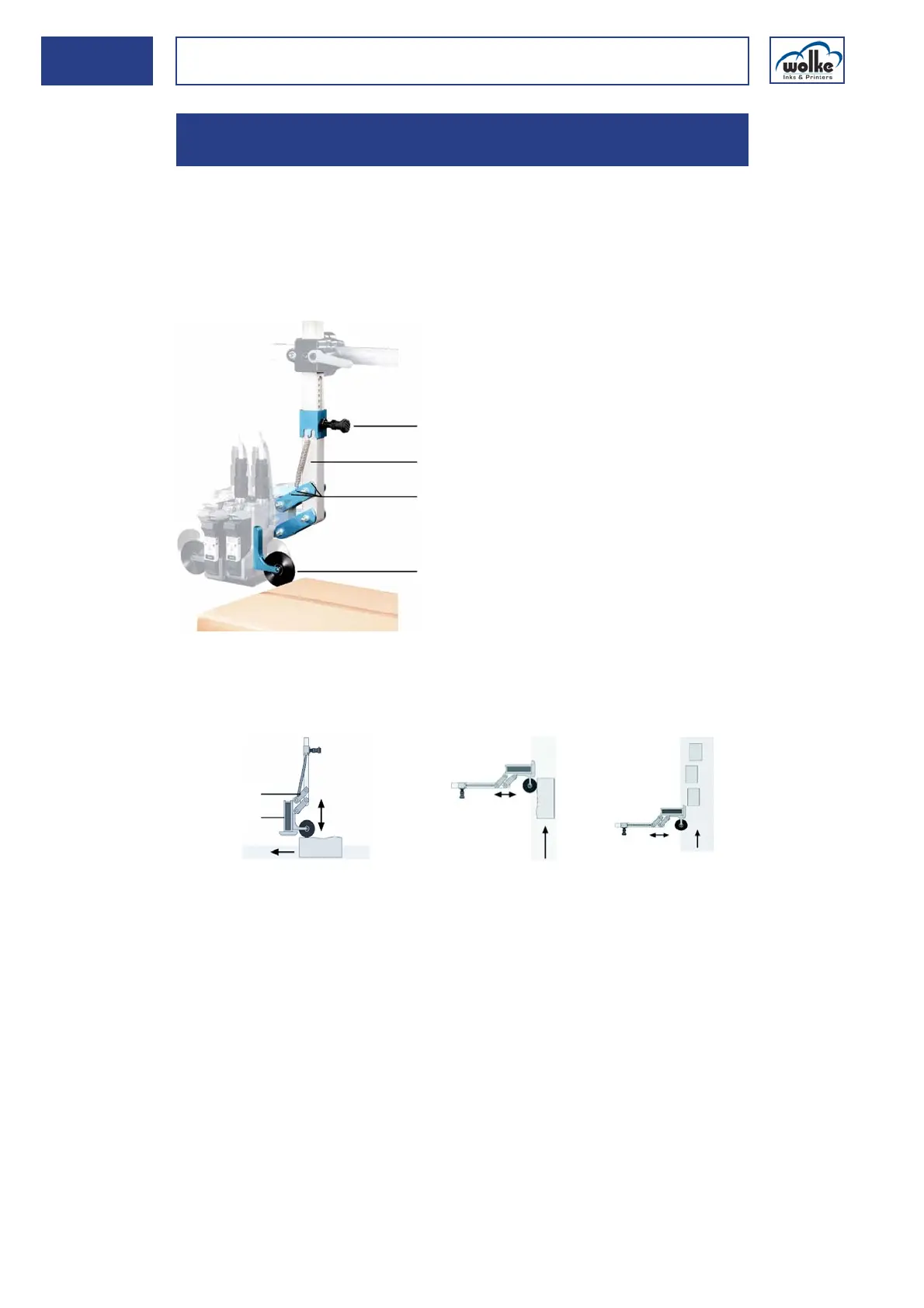

Fig. 4_49: Parallelogram

It is suitable for side- or top-mounting. The maximum deflection is

90 mm, measured from the rest position.

Fig. 4_50: possible positions of the parallelogram

4.7 Installation by means of the parallelogram

(optional)

1 Parallelogram 2 Print head

Adjustment of spring force

Spring

Attachment positions

Locating wheel/deflector

at the top

lateral, uneven/cam-

bered products or

packages

lateral, different

product positions
