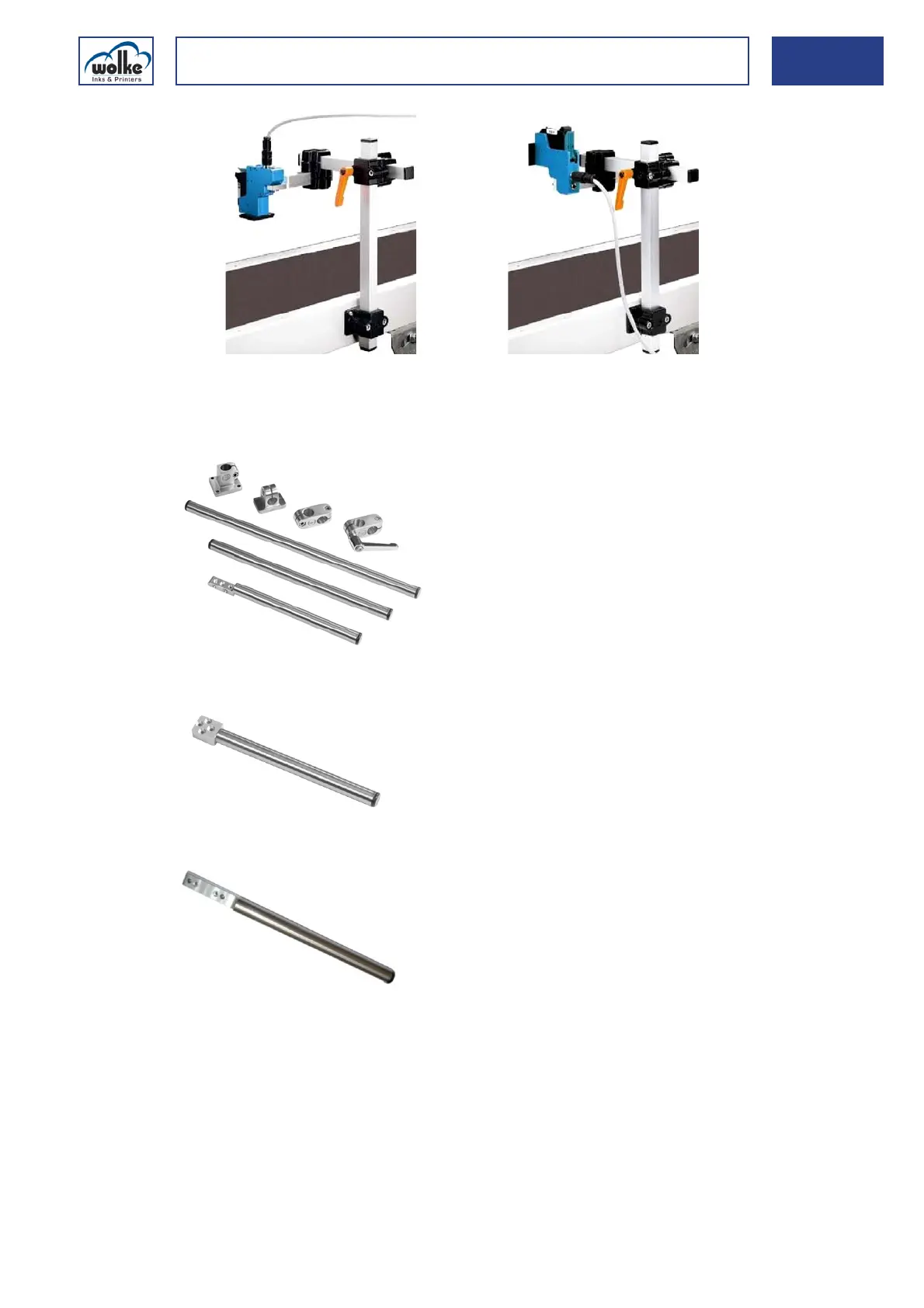

Fig. 4_45: Example with reference to 1-head mounting (using a 1-head mounting
system)
Fig. 4_46: Stainless steel mounting system for the red and green print head
Installation by
means of the
mounting
system
Fig. 4_47: Stainless steel mounting adapter for the blue print head
Fig. 4_48: Stainless steel mounting adapter for the golden print head
Printing from above
Printing from the side
The stainless steel design of the
mounting system is especially
well suited for the pharmaceuti-
cal, medical and food industry.
The mounting adapter for assem-
bly of a red or green print head is
available in a length of 200 mm.
The mounting adapter for assem-
bly of a blue print head is availa-
ble in a length of 200 mm.
The mounting adapter for assem-
bly of a golden print head is avail-
able in a length of 200 mm.
