Label

Manual m600 basic 2.6_01 97

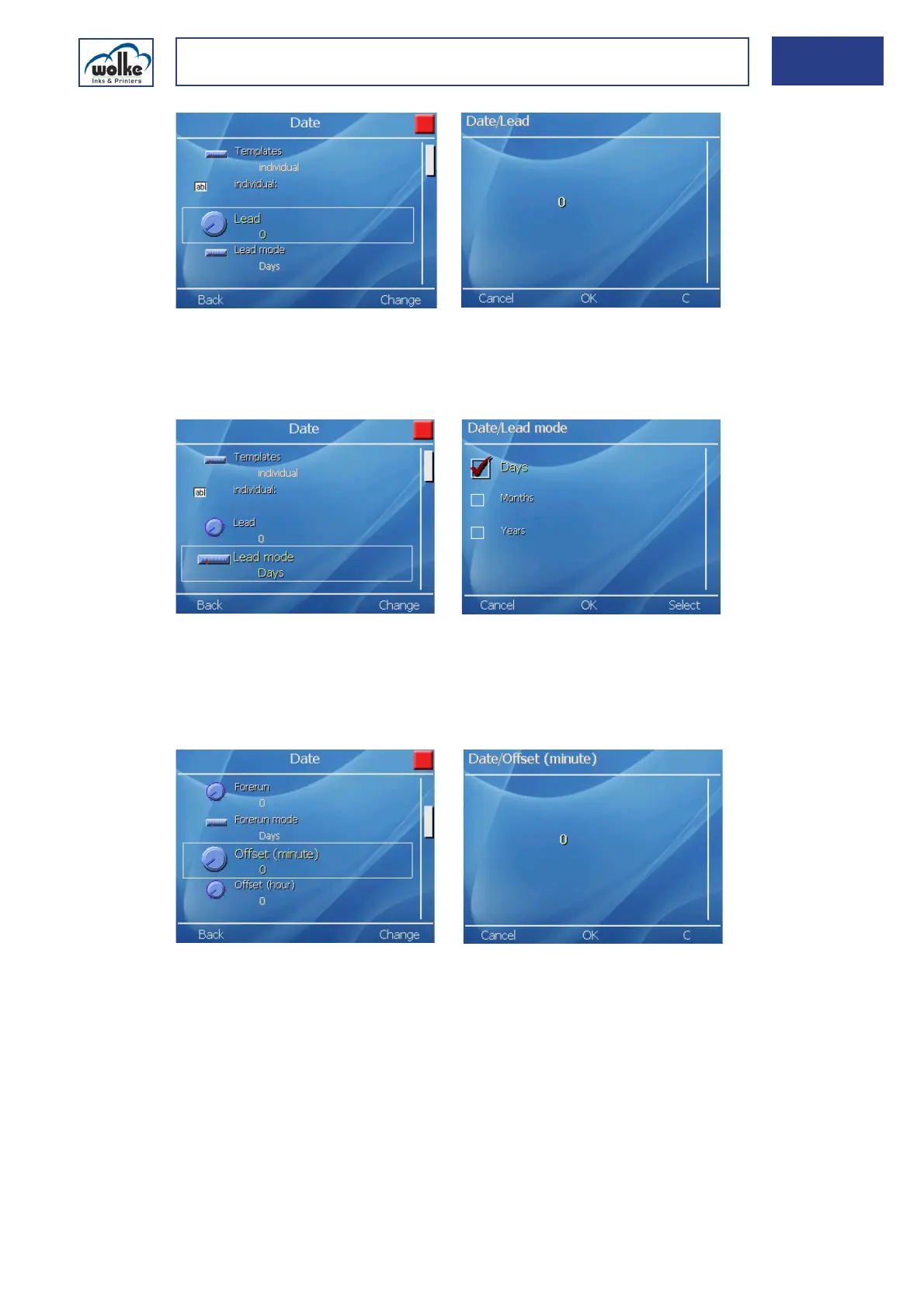

Fig. 7_153: Date – Lead

DateLead mode

The forerun mode can be defined in days, months or years.

Fig. 7_154: Date – Lead mode

Offset (Minute)

If instead of having the date adjusted at midnight on the selected day you

wish to choose a different time, you can enter this time in minutes here.

Fig. 7_155: Date – Offset (Minute)

Offset (Hour)

If instead of having the date adjusted at midnight on the selected day you

wish to choose a different time, you can enter this time in hours here.
