Installation

Manual m600 basic 2.6_01 17

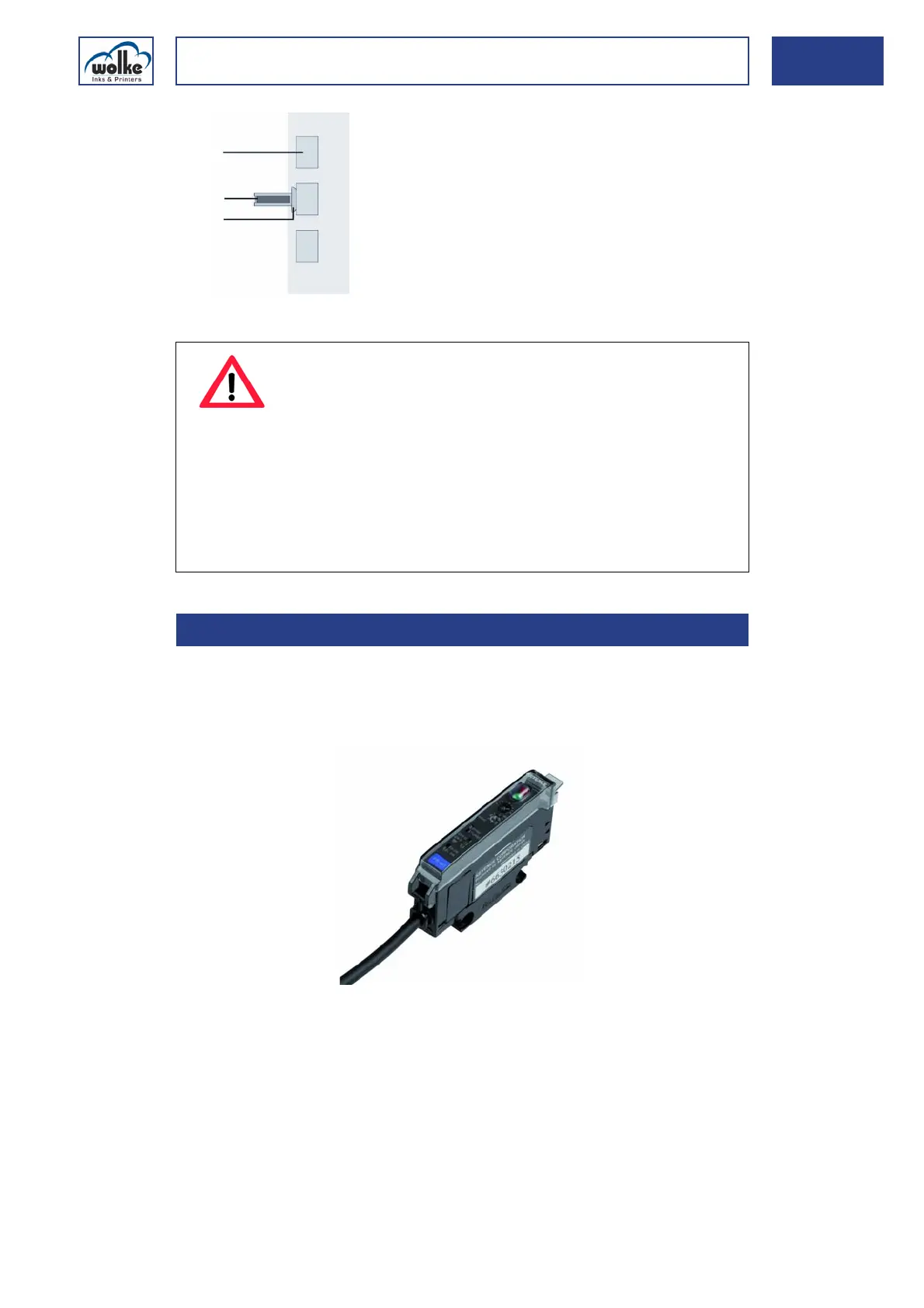

Fig. 4_31: Selection of a installation position

Photoelectric

cell

To enable the photoelectric cell to be fitted, our print heads have been

equipped with four new size M3 threads (two on each side, see below in

Chapter 14.1, "Technical drawings").

Fig. 4_32: Photoelectric cell (Keyence)

ATTENTION

The following problems can be avoided if the installation

position is selected correctly:

• Vibrations on the print head

• Overheating of the print head, the photoelectric cell and

the cartridge as a result of being installed too close to

sources of process heat

• Electrostatic charge

• Soiling caused by lacquer, adhesive or other similar prod-

ucts used in the production process
