Label

102 Manual m600 basic 2.6_01

Time format

The menu "individual" can be used to compile a user-defined time format

(see Chapter 7.3.4). Here is an overview of the format parameters to be

used:

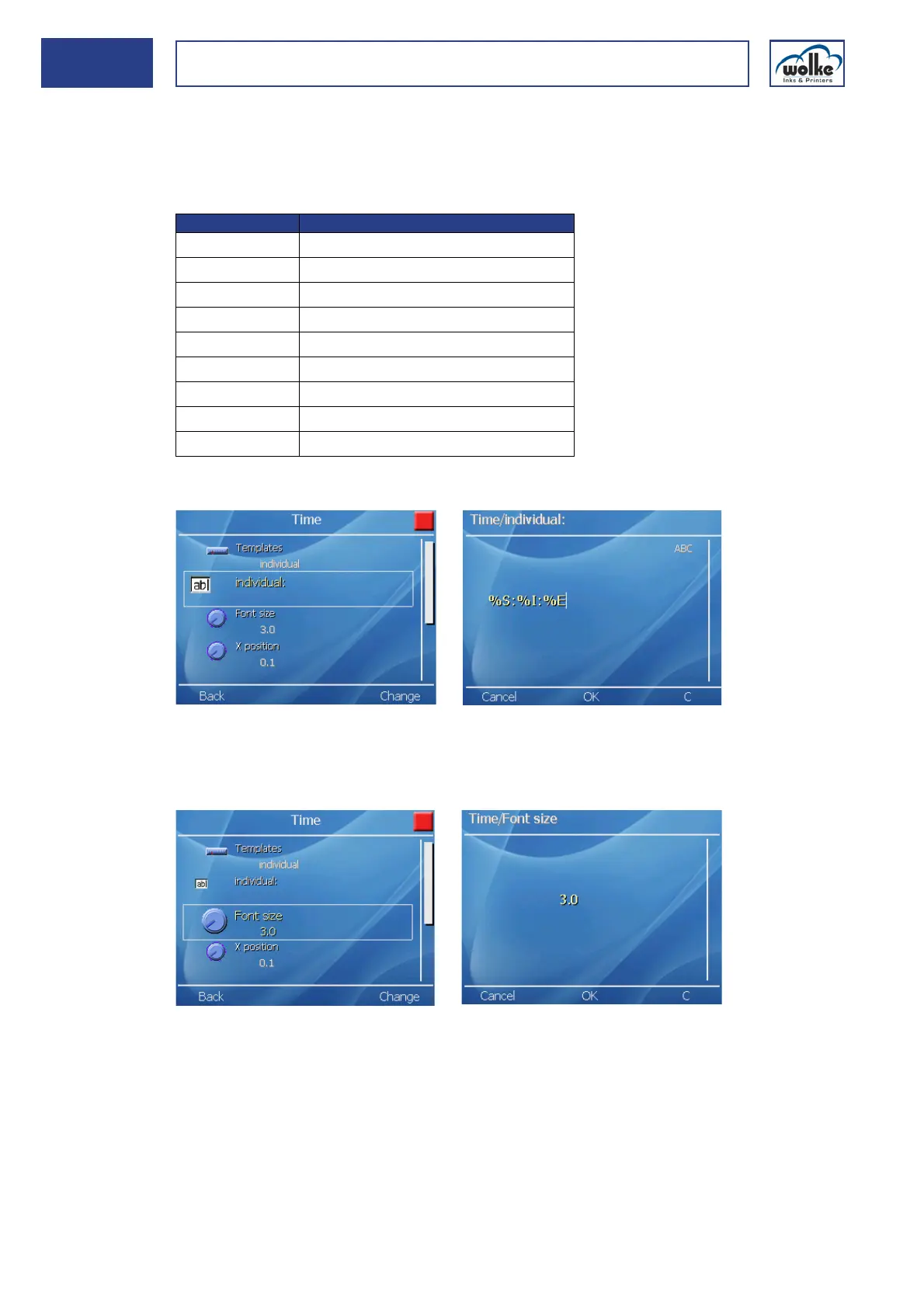

Tab. 7_10: Format parameters in the time field

Time

Fig. 7_166: Time – individual

For an explanation on the menu items Font size [mm], X position [mm],

Y position [mm] and Delete object, please refer to Chapter 7.3.1.

Fig. 7_167: Time – Font size

Parameter Explanation

% S Hours (24h format), 2-digit

% s Hours (24h format)

% T Hours (12h format), 2-digit

% t Hours (12h format)

% I Minutes 2-digit

% i Minutes

% E Seconds 2-digit

% A AM/PM

% a am/pm
