wolke m600 basic - Fig. 7_211: Head 1 - Distance before; Fig. 7_212: Head 1 - Print Length

Label
Manual m600 basic 2.6_01 123
7
Distance before
The "Distance before" is the distance (in mm) between product recogni-
tion and the triggering of printing.

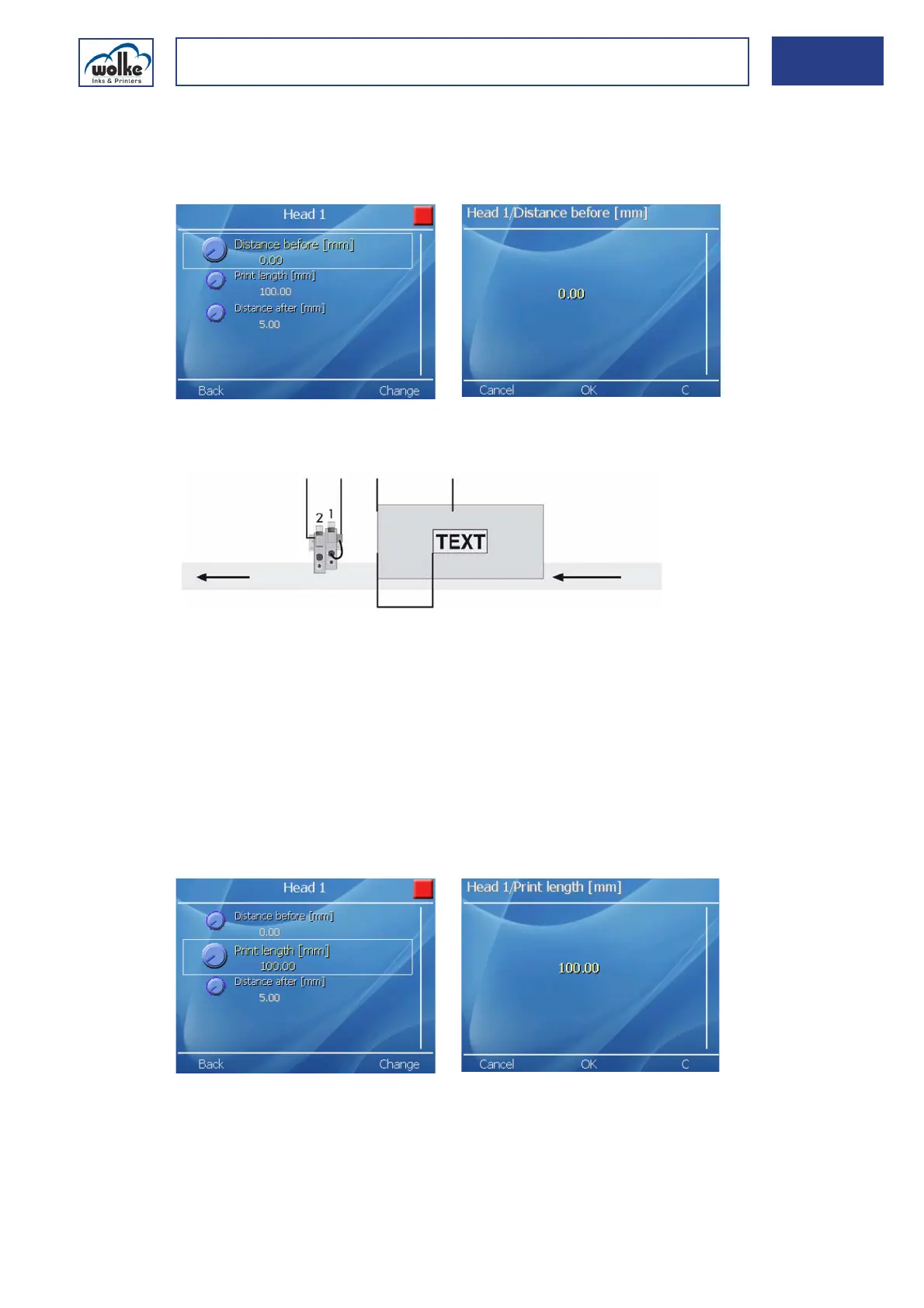

Fig. 7_211: Head 1 – Distance before
Label size
Print length
Measure the text masters or the carton and enter the length of the label
(in mm). This ensures that the label master is created with the correctly
set length.
Fig. 7_212: Head 1 – Print length
1 Print heads 4 Product
2 Photoelectric cell 5 Triggering of printing
3 Product recognition 6 Distance before
1
2
3
4
5
6
