Label
94 Manual m600 basic 2.6_01
7
Processing of the GS1-coded data for the GS1 Datamatrix
• If the selection "in conformity with GS1" is activated, the input data are
coded in accordance with the EAN128 Standard (FNC1).
• If the selection"in conformity with GS1" is deactivated, the Datamatrix is
coded as previously (without FNC1).
Module size
The module size defines the size of the individual code modules. The value
specified here gives the module size in pixels.
Example:
Entering the value “10” means that the module size is 10 x 10 pixels.
Under ideal conditions the pixel size should be 0.043 mm.

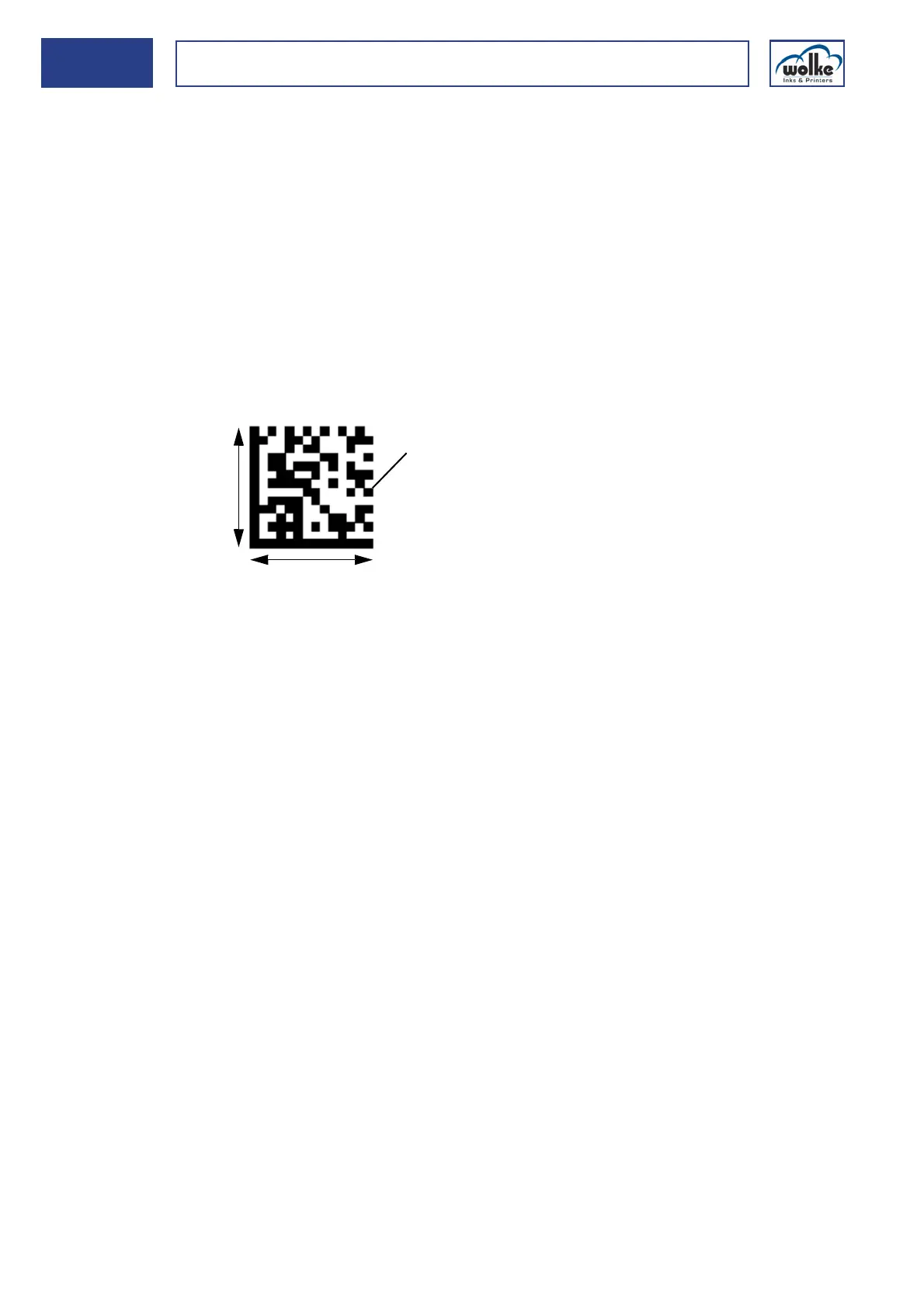

Fig. 7_150: Example Datamatrix
Datamatrix Example: Matrix size = 8x32, module size = 10
Calculation of the height (h)
h = Matrix size x module size x pixel size
h = 8 x 10 x 0.043 mm = 3.44 mm
Calculation of the width (b)
b = Matrix size x module size x pixel size
b = 32 x 10 x 0.043 mm = 13.76 mm
Bar width reduction, longitudinal
An entry in this field reduces the number of pixels in each module in the
direction of printing.
Bar width reduction, crosswise
An entry in this field reduces the number of pixels in each module
crosswise to the direction of printing. The size of the Datamatrix code is
not affected by these two entries.
