wolke m600 basic - Fig. 7_156: Date - Offset (Hour); Fig. 7_157: Date - Update; Fig. 7_158: Date

To Next Page

To Previous Page

Label

98 Manual m600 basic 2.6_01

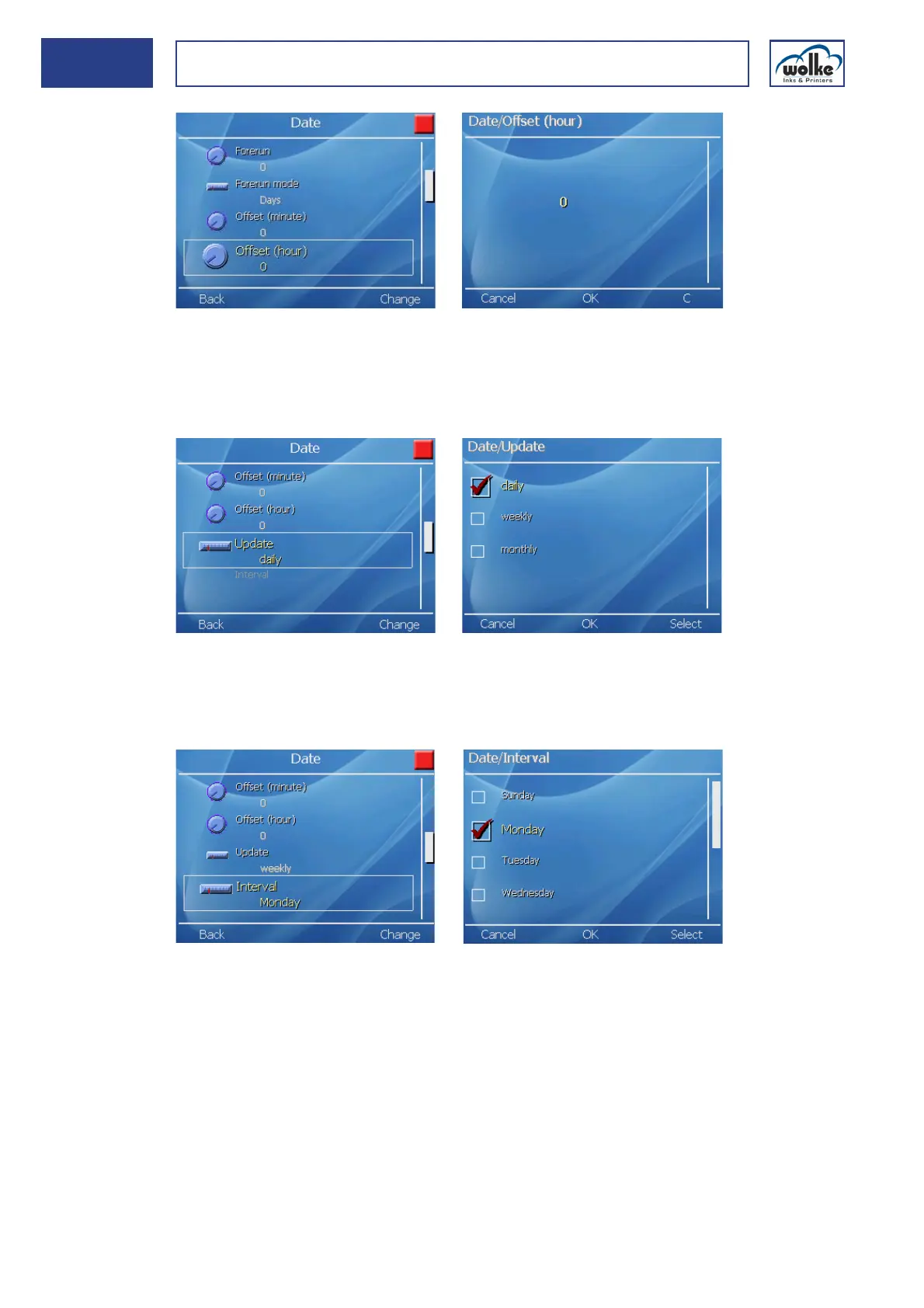

Fig. 7_156: Date – Offset (Hour)

Date Update

The date is always updated automatically at midnight each day. In order

to set a different time for the update, specify the required setting.

Fig. 7_157: Date – Update

Interval

This is for specifying the interval between the monthly or yearly updates.

Fig. 7_158: Date – Interval, update weekly
