Special size print heads for printing different types of print material.

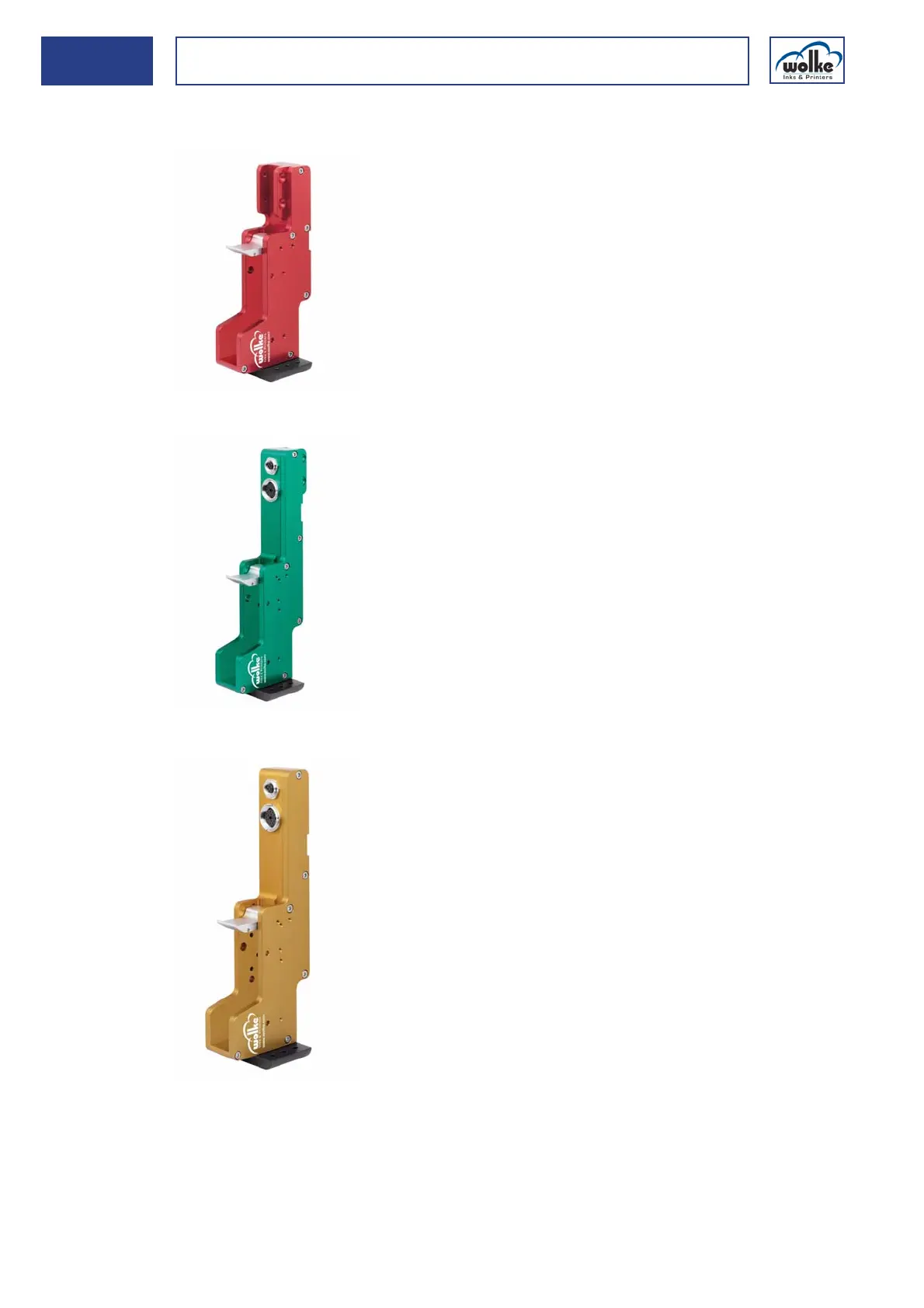

Fig. 4_25: Red print head

Print head and

HP cartridge

Fig. 4_26: Green print head

Fig. 4_27: Golden print head

Special version, similar to the green

print head, but with a side mount.

Since it does not have the mounting

lugs at the bottom, it can be inte-

grated even deeper in the machine.

Short, low model with cable outlet to

the front. This special version per-

mits print material to be printed

which is fed through deep inside the

machine.

Short, low model with cable outlet to

the rear.
