Label

Manual m600 basic 2.6_01 125

Other

parameters

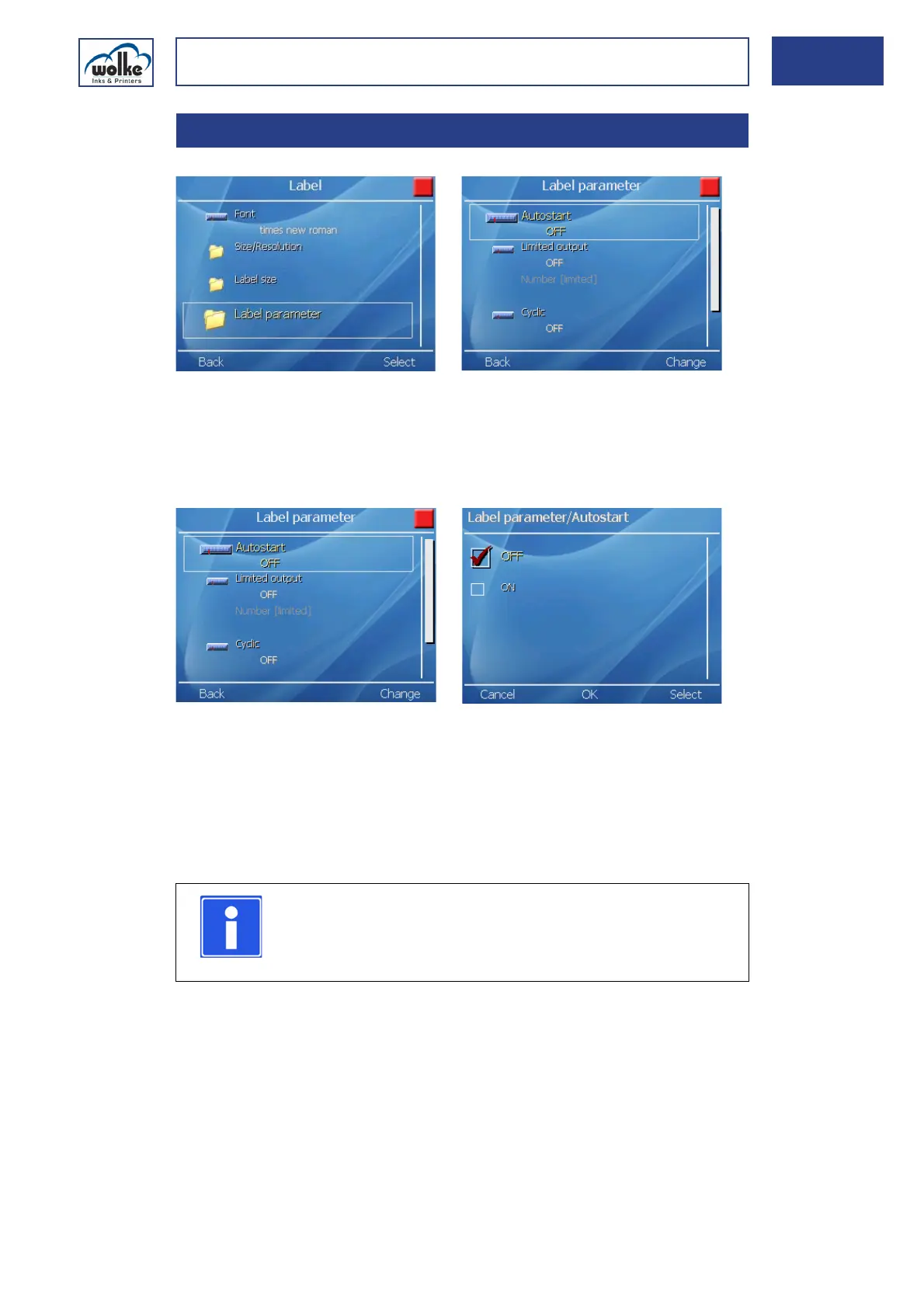

Fig. 7_214: Label size – Label parameters

Autostart

After switching the m600 basic ON, the last label loaded is printed auto-

matically (which has activated this parameter).

Fig. 7_215: Label parameter – Autostart

The "Autostart" function permits the m600 basic to be restarted automat-

ically after a power failure. If the function is activated, the last label to

have been opened will be automatically loaded and the m600 basic acti-

vated automatically after the m600 basic is switched on. This function per-

mits the printing system to be restarted fully automatically without the

need for any action by the operator (e. g. system emergency stop).

7.5.4 Other parameters

NOTE

More than one label can be marked as an Autostart label.

However, the system starts only with the last label to

have been loaded.
