Info

Manual m600 basic 2.6_01 141

InfoHere you see general information, such as the version number, the avail-

able memory space or the current label.

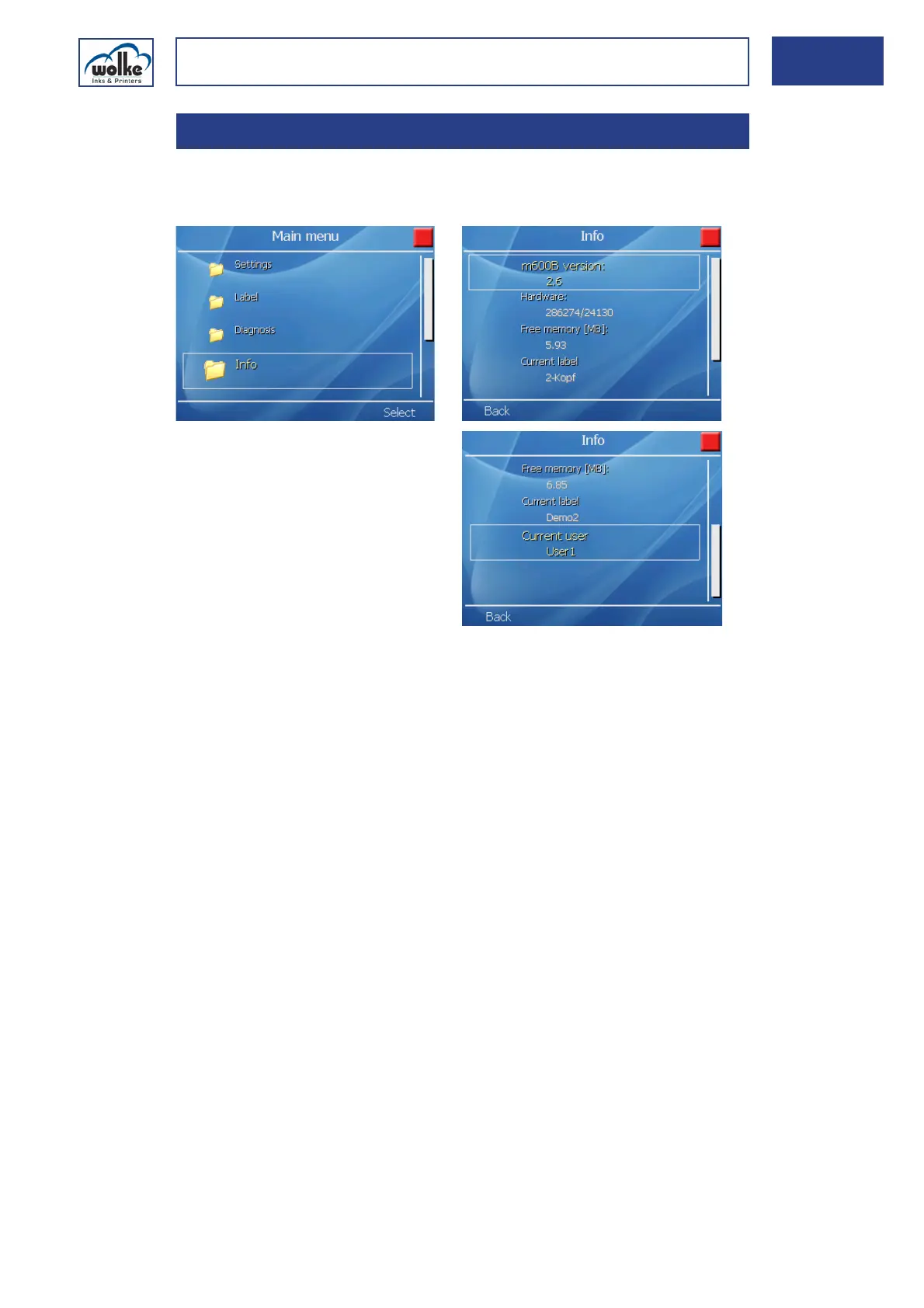

Fig. 9_234: Main menu > Info

m600B version:

Indicates the current software version.

Hardware:

Indicates manufacturer-specific information.

Free memory:

Displays the free RAM memory available (main memory)

Current label:

Indicates the currently loaded label.

Current user:

Indicates the current user.

9 Info
