Technical data

Manual m600 basic 2.6_01 171

Pulse generator

extension

cables

Since the standard pulse generator is only supplied with a 3 m connecting

cable, Wolke Inks & Printers GmbH also offers a range of extension cables

in different lengths.

Plug-and-socket connectors used

A 12-pole plug-and-socket connector is used for the pulse generator con-

nection.

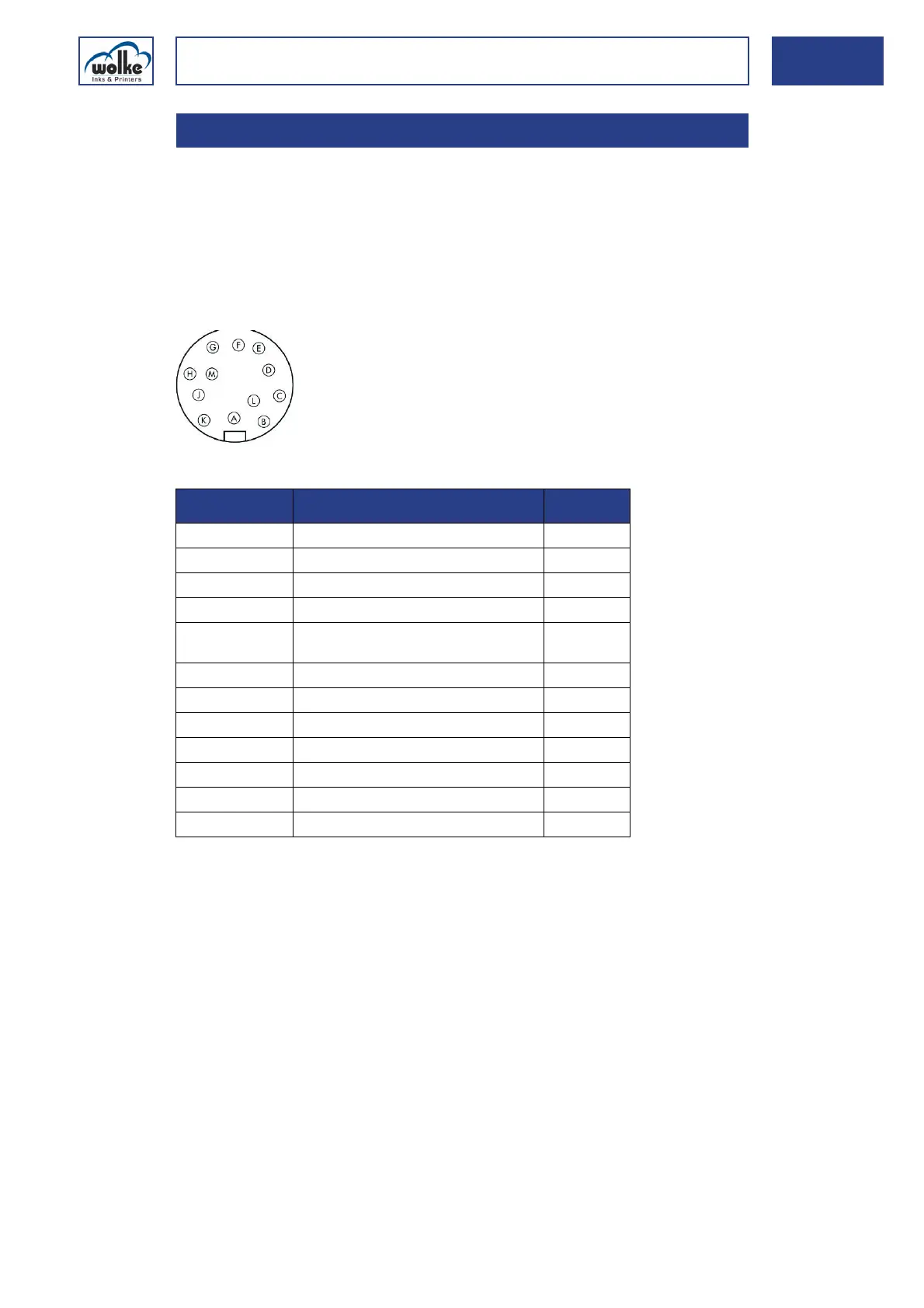

Top view of the solder side of the plug

Tab. 14_17: Connector pin assignment – Pulse generator extension cables

14.2.3 Pulse generator extension cables

Pin on the

m600 basic

Function Pins on the

coupler

BGND B

C Output pulse of the pulse generator C

D GND (jumpered in plug) D

E Output pulse of the pulse generator

(90° out of phase), not required.

GVcc G

J GND (jumpered in plug) J

Cable connector

Cable tie, series 423, Typ 99-5629-15-12

Cable coupler

Cable tie, series 423, Typ 99-5630-15-12
