wolke m600 basic - Error - Cartridge Removed; Fig. 6_115: Settings > Cartridge > Print Head 2; Fig. 6_116: Message Print Head Error; Print Head 2

To Next Page

To Previous Page

Settings

Manual m600 basic 2.6_01 71

Print head 2

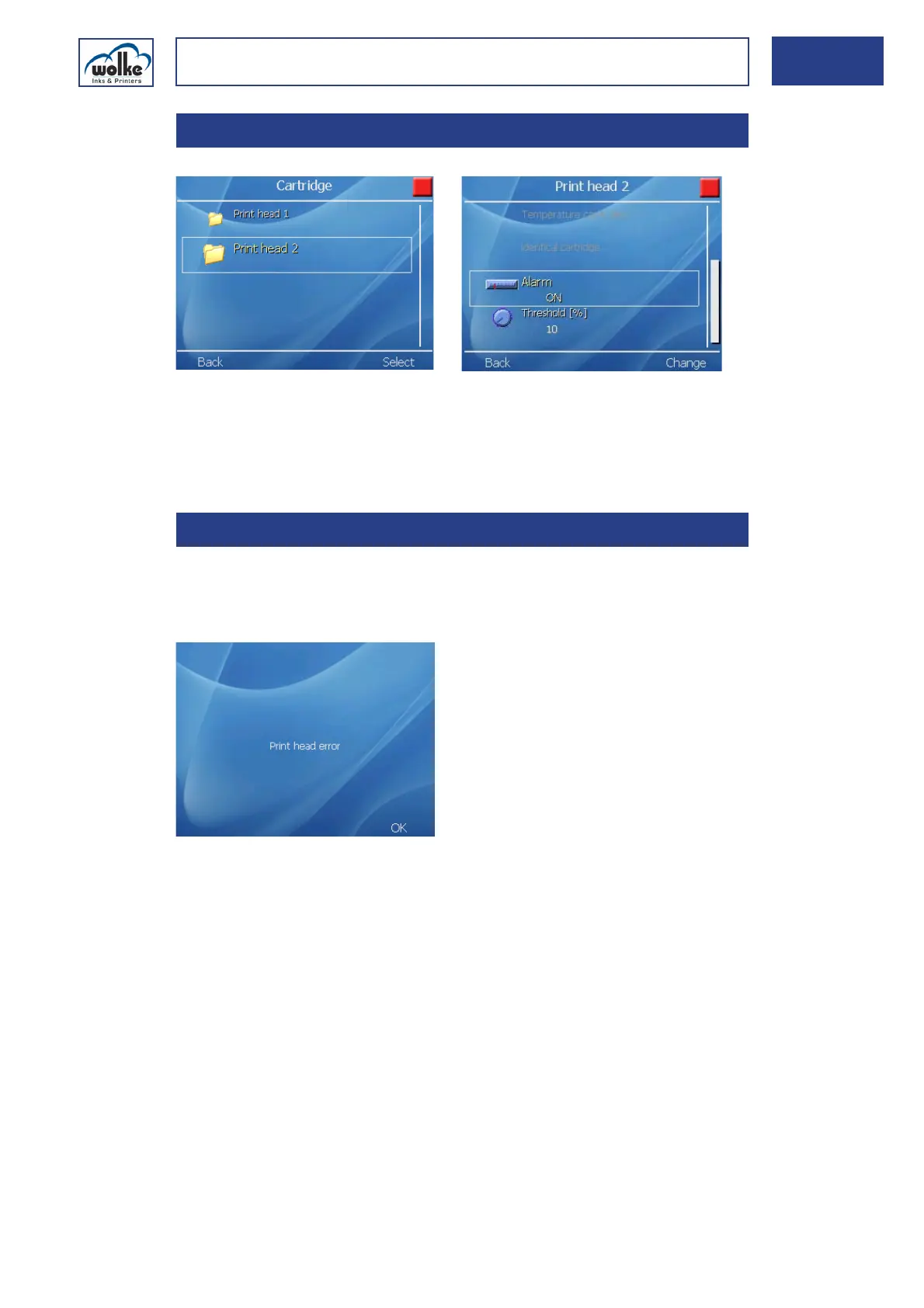

Fig. 6_115: Settings > Cartridge > Print head 2

Corresponds to the settings under "Print head 1". If "Cartridges identical"

has been selected under print head 1, only the "alarm" and the "threshold"

can be specified for the alarm.

Cartridge

removed

If a cartridge is removed from the print head during printing while the

temperature control is activated, or if printing is started without cartridge,

the following message appears:

Fig. 6_116: Message „Print head error“

6.3.8 Print head 2

6.3.9 Error - cartridge removed
