66 Manual m600 basic 2.6_01

Cartridge size –

type

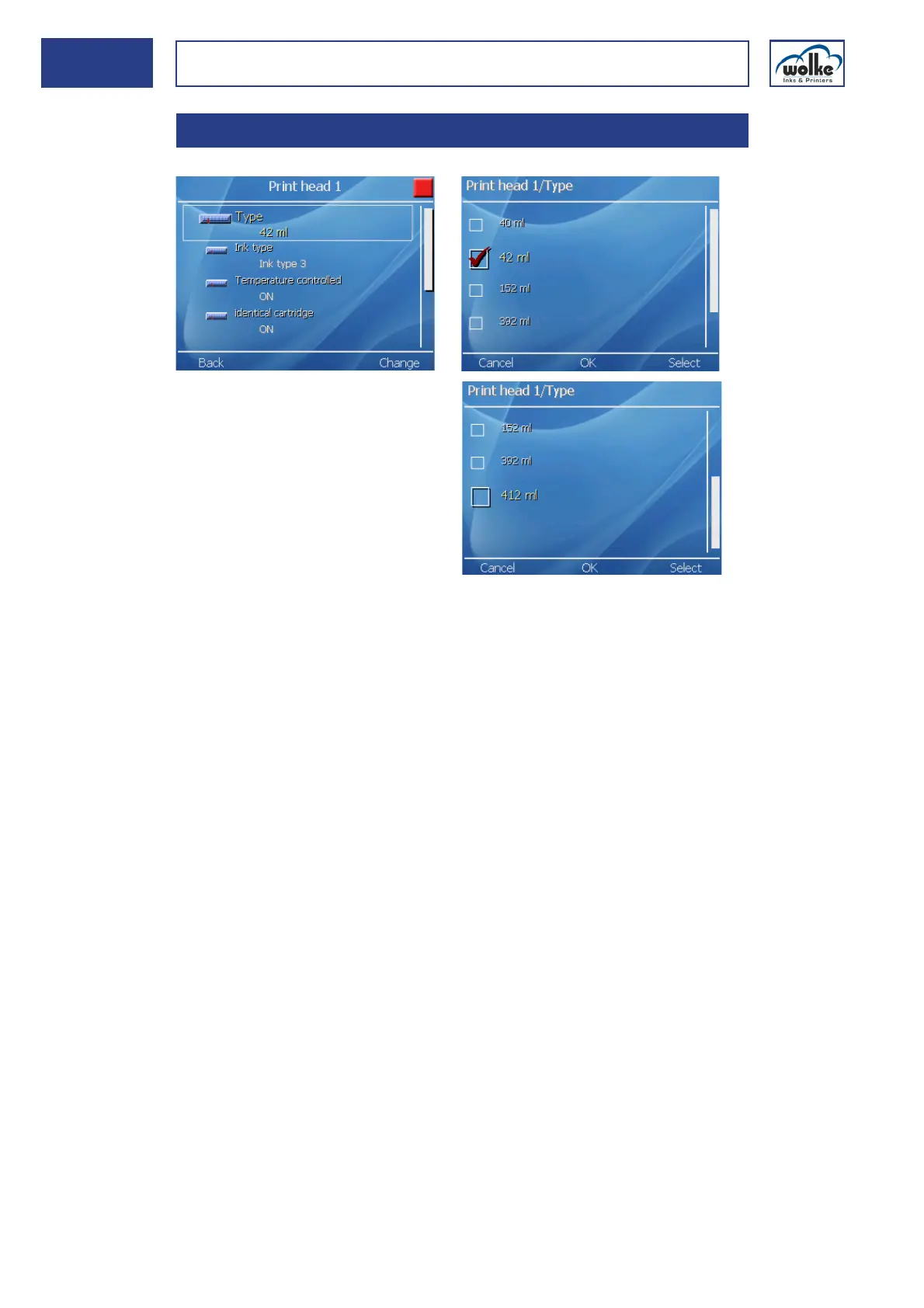

Fig. 6_109: Cartridge > Print head 1 > Type

This menu item is for setting whether standard cartridges 42 ml (40 ml)

or 412 ml bulk systems are to be used. This must be set for each print

head. The volume set here is used as the basis for calculating the ink con-

sumption. To ensure that the correct level of ink is always shown and for

the "Cartridge empty" signal, the setting must always correspond with the

ink system used (cartridge or bulk).

6.3.2 Cartridge size – type
