wolke m600 basic - Time; Fig. 7_164: New Object Time; Fig. 7_165: Time

To Next Page

To Previous Page

Label

Manual m600 basic 2.6_01 101

TimeInserting time fields which may contain time data following individual

templates.

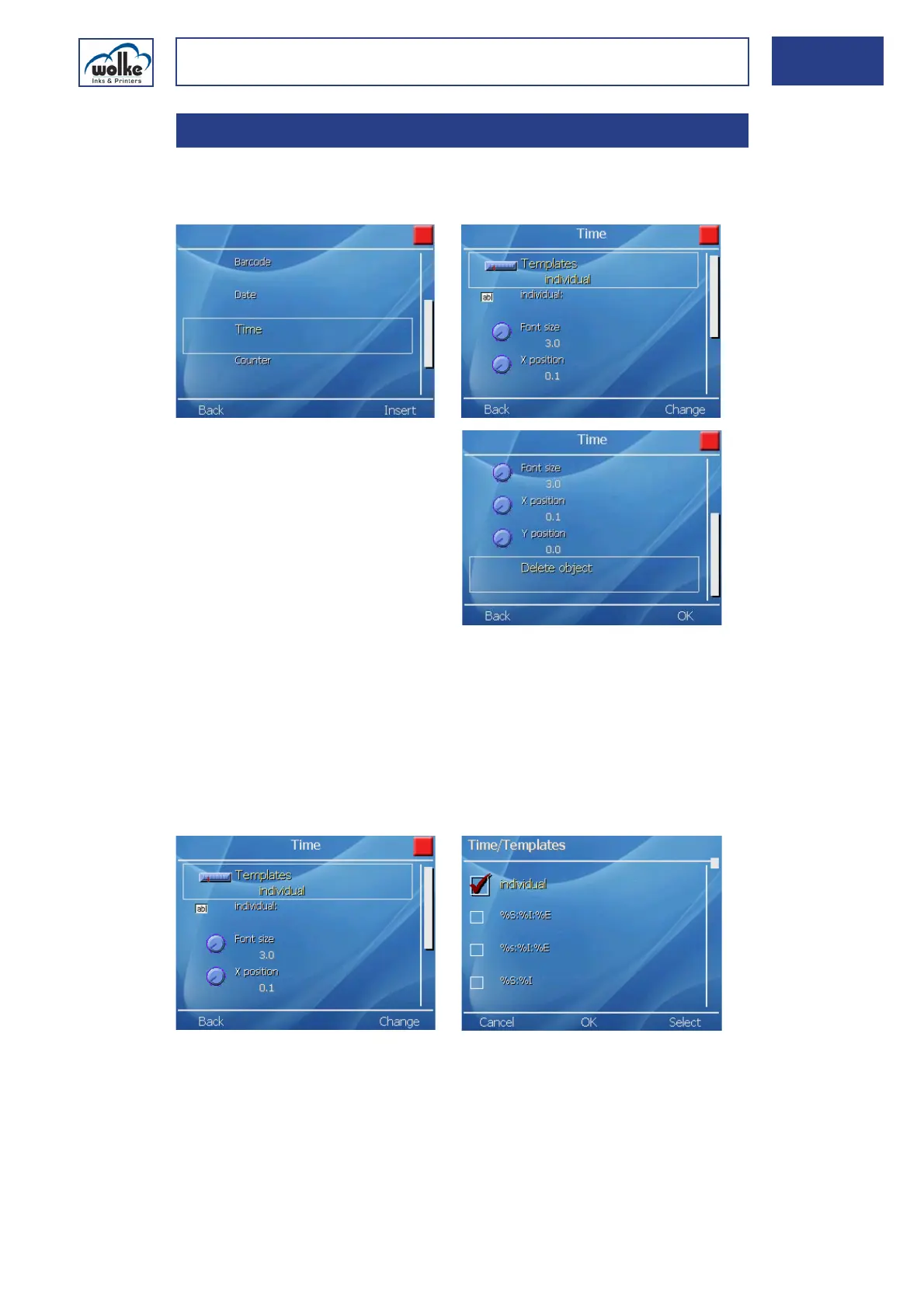

Fig. 7_164: New object time

Templates

This selection list allows you to select a predefined time format. If the se-

lection list does not contain a suitable format for the required application,

you also have the option of creating a user-defined date format under "in-

dividual".

The time integrated in the selection list is selected as an example. The

time format is displayed in the label field on the basis of the current time.

Fig. 7_165: Time – Templates
