Data exchange

148 Manual m600 basic 2.6_01

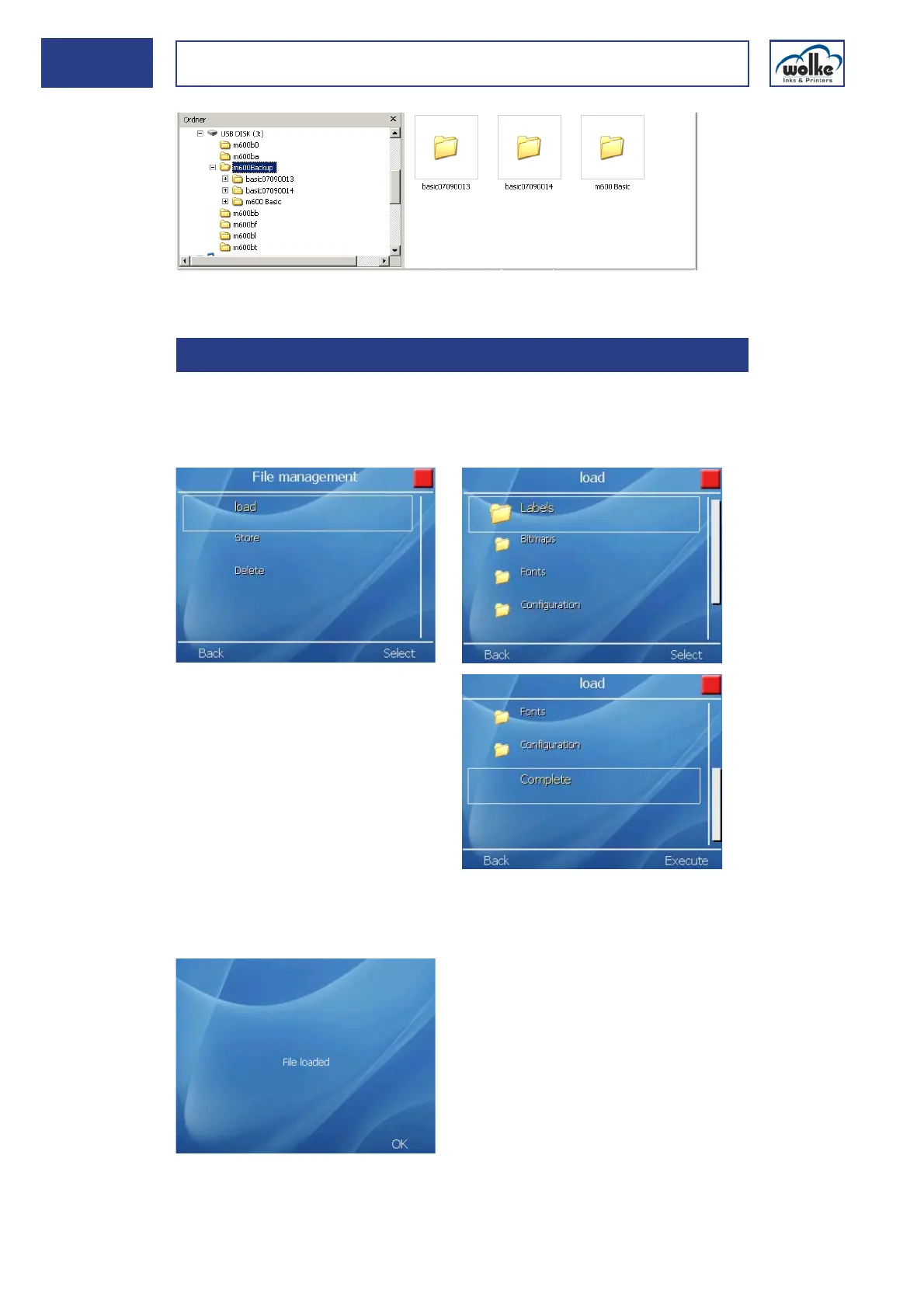

Fig. 13_240: several data backups in the folder "m600Backup"

files

In the menu "Loading", the data located in the folder "m600Backup" on

the USB stick are displayed in folders depending on the group in question

(labels, fonts, bitmaps, etc.).

Fig. 13_241: Loading files

After loading, the message "File loaded" appears for confirmation.

13.1.1 Loading files
