Xerox WorkCentre 6605 Service Manual

Image Quality
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
3-22

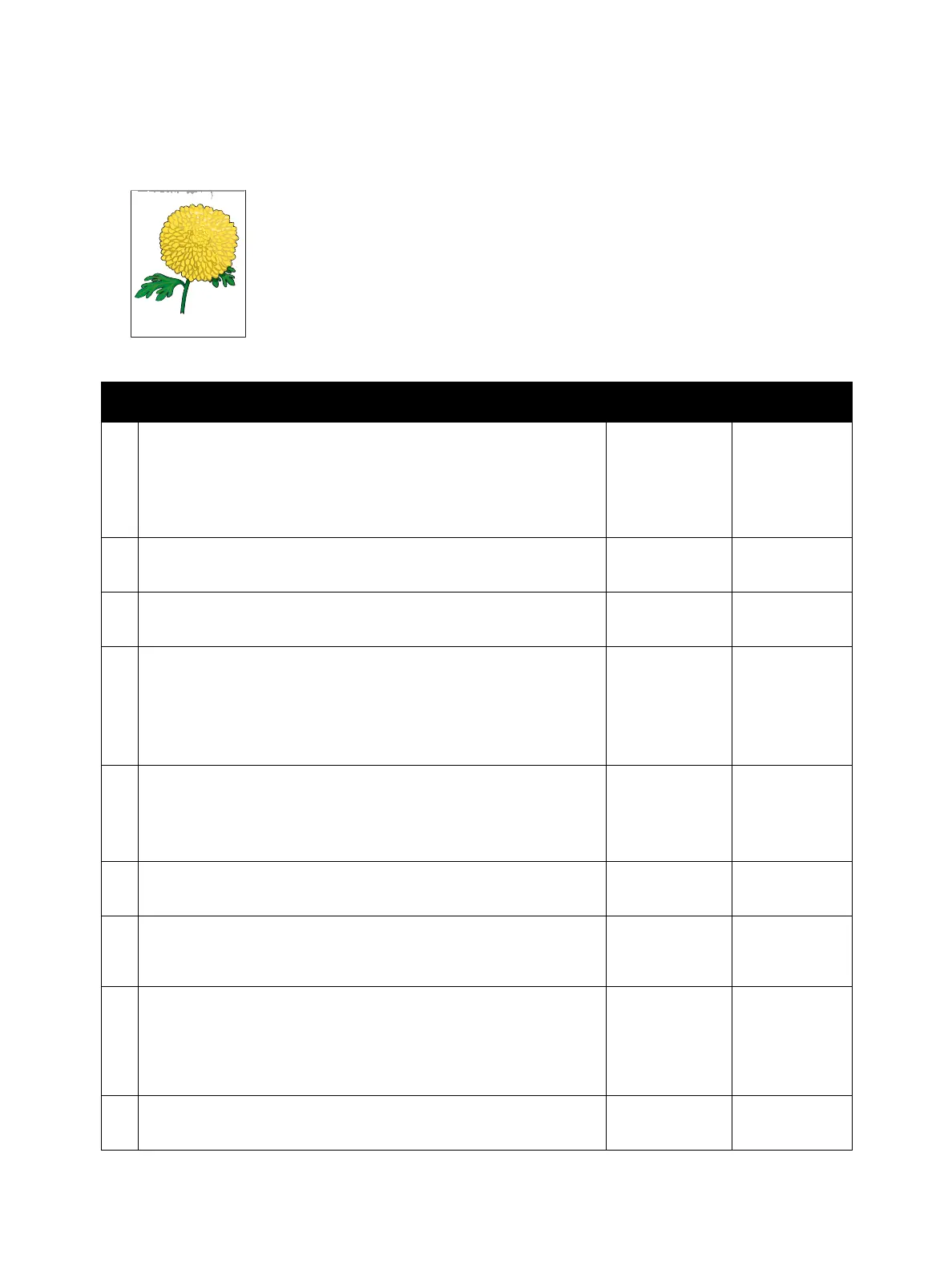

Leading edge paper damage
Possible causative parts
• Transfer Roller (PL14.1.99)
• Fuser Assembly (PL7.1.1)
• Retard Holder Assembly (PL13.3.14)
• Feed Roller Assembly (PL13.2.10)
• Retard Holder Assembly (PL10.3.3)
• TA1 Roller Assembly (PL13.1.2)
• TA2 Roller Assembly (PL13.1.3)
• Regi Chute Assembly (PL15.2.1)
• Exit Roller Assembly (PL17.1.14)
Action Yes No
1 When you use the Bypass Tray, reverse the paper and then try
again.
When you use any of the trays, change the paper and then try
again.
Does this solve your problem?
The task is
complete.
(Bypass Tray)
Go to action 2.
(trays)
Go to action 4.
2 Try again with a different sheet of paper.
Does this solve your problem?
The task is
complete.
Go to action 3.
3 Use any of the trays in place of the Bypass Tray.
Does this solve your problem?
The task is
complete.
Go to action 4.
4 Check the paper loaded in the paper cassette.
Remove the paper cassette, adjust the paper guides, and reload the
paper correctly.
Reinstall the paper cassette correctly, and perform a test print.
Is the image printed correctly?
The task is
complete.
Go to action 5.
5 Check the paper humidity conditioning effect.
Load the unopened (or stored and sealed under humidity control)
and recommended paper, and then perform a test print.
Is the image printed correctly?
The task is
complete.
Go to action 6.
6 Check the paper type setting.
Is the paper type setting corresponding with the paper printed?
Go to action 7. Set the correct
paper type.
7 Check the paper transfer path.
Are there any dirt or foreign substances on the paper transfer path?
Remove the
foreign
substance.
Go to action 8.
8 Check the paper feed path roller.
Is the roller on the paper feed path not dirty, damaged, or worn,
and does it work correctly?
Also, is the paper feed path roller installed correctly?
Go to action 9. Clean or
replace the
corresponding
roller, and
reinstall it.
9 Check the installation status of the Transfer Roller.
Is Transfer Roller installed correctly?
Go to action 10. Reinstall
Transfer Roller.
Leading Edge Damage

Xerox WorkCentre 6605 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Resolution	Up to 600 x 600 x 4 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Speed	33.6 Kbps
Standard Paper Capacity	550 sheets
Maximum Paper Capacity	1, 250 sheets
Paper Output	250 sheets
Duplex Printing	Yes
Processor	533 MHz
Memory (Standard)	512 MB
Memory (Maximum)	1 GB
Monthly Duty Cycle	Up to 80, 000 pages
Type	Multifunction
Copy Speed	Up to 36 cpm black and color
Fax Resolution	300 x 300 dpi
Media Sizes	Letter, Legal, A4, A5, B5, Custom sizes
Connectivity	USB 2.0, Ethernet
Mobile Printing	Apple AirPrint
Operating System Compatibility	Windows, Mac, Linux
Dimensions (W x D x H)	500 mm
Weight	29.6 kg
Print Speed	Up to 36 ppm (Black) / Up to 36 ppm (Color)
