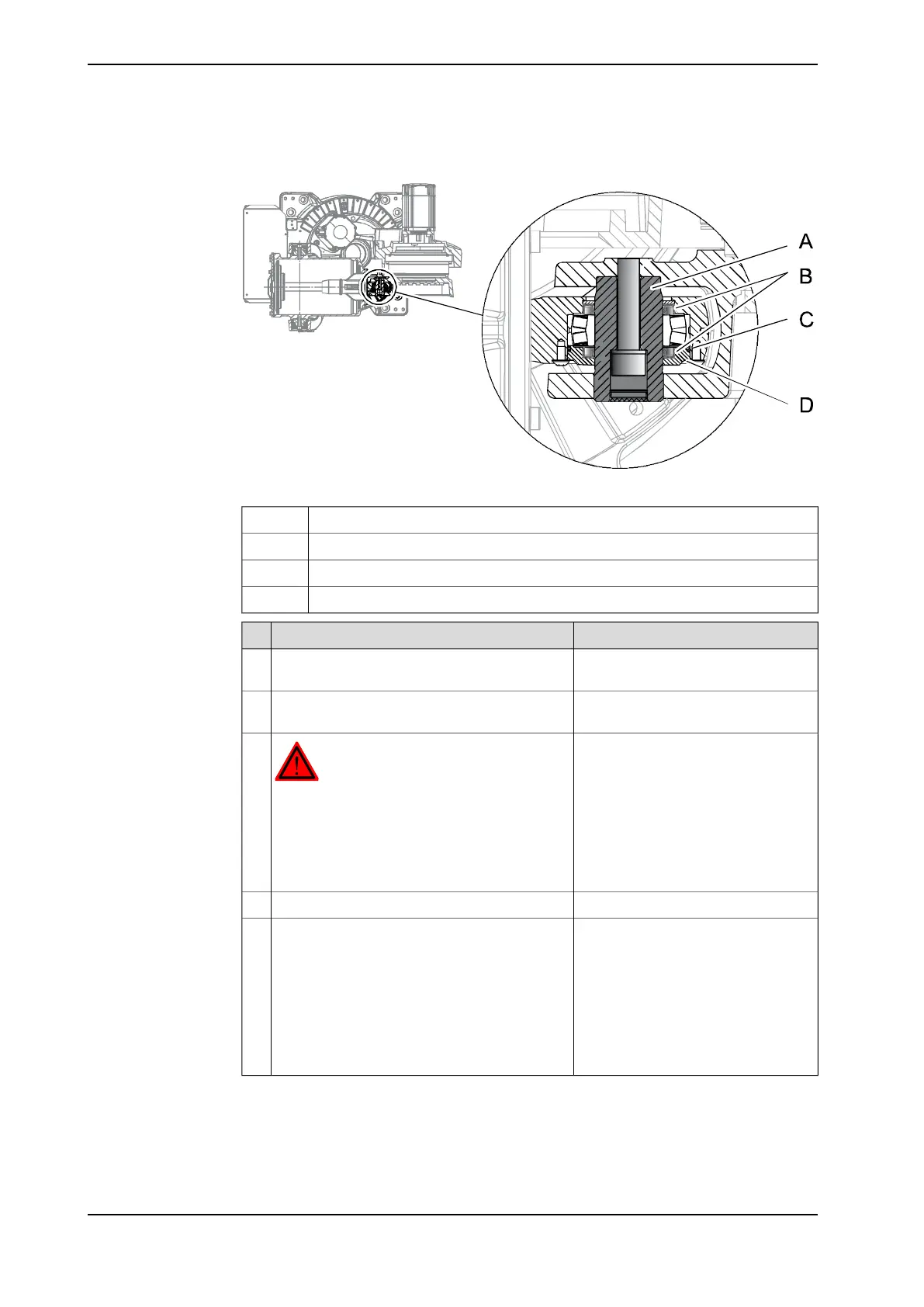

Check the o-rings and sealings in the front ear of the balancing device for leaks.
xx1000000207
ShaftA
Sealing ring (radial (2 pcs)B
O-ringC
Sealing spacerD
NoteAction
Clean the area at the front ear from contamina-
tion.
1
Run the robot for some minutes, in order to
move the balancing device piston.
2
DANGER
Turn off all:
• electric power supply to the robot
• hydraulic pressure supply to the robot
• air pressure supply to the robot
Before entering the robot working area.
3
Check the o-rings at the front ear for leakage.4
The o-rings are included in the Main-
tenance kit, bearings and seals
already assembled with sealing
spacers and sealing rings. Art. no. for
the kit is specified in Required material
on page 119.
Replace o-rings if leaks are detected.5
Replacement of the complete bearing
is also described in section Replacing
the balancing device on page 354.
