NoteAction
xx1200001281

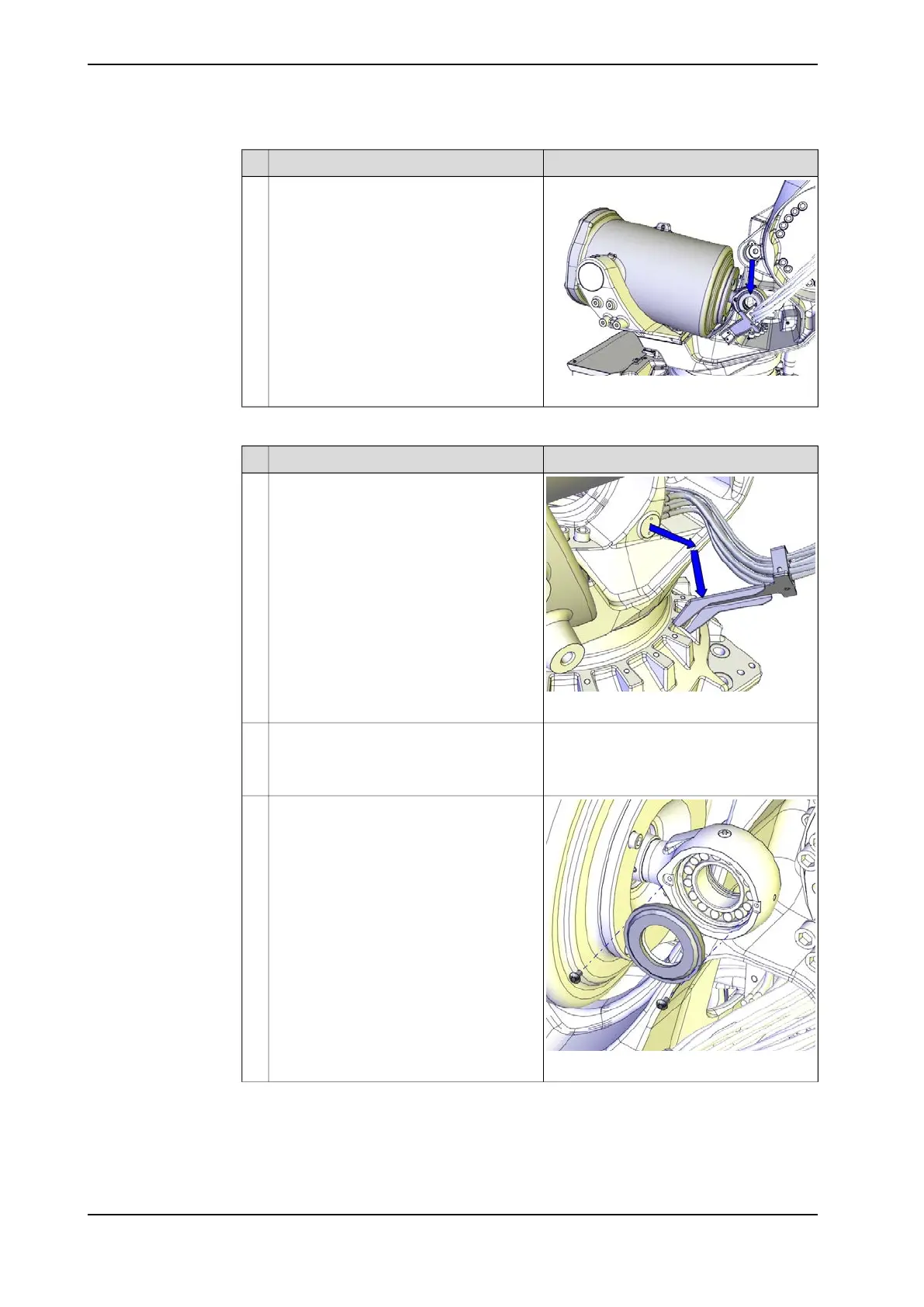

Put down the balancing device and let it
rest on the frame.
4
Removing the spherical roller bearing, link ear
NoteAction
xx1200001184
Unscrew the attachment screws of the
bracket, use caution and move it a little to
the side, to give room for the dismantle and
mounting tool.
1
Check that the link ear is in a position
where it is possible to apply the dismantle
and mounting tool. If not adjust with the
lifting accessory.
2
xx1300000774
Unscrew the attachment screws securing
the end cover, use caution and remove end
cover and radial sealing with a screwdriver.
3
Continues on next page
346 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.1 Replacing spherical roller bearing, link ear
Continued
