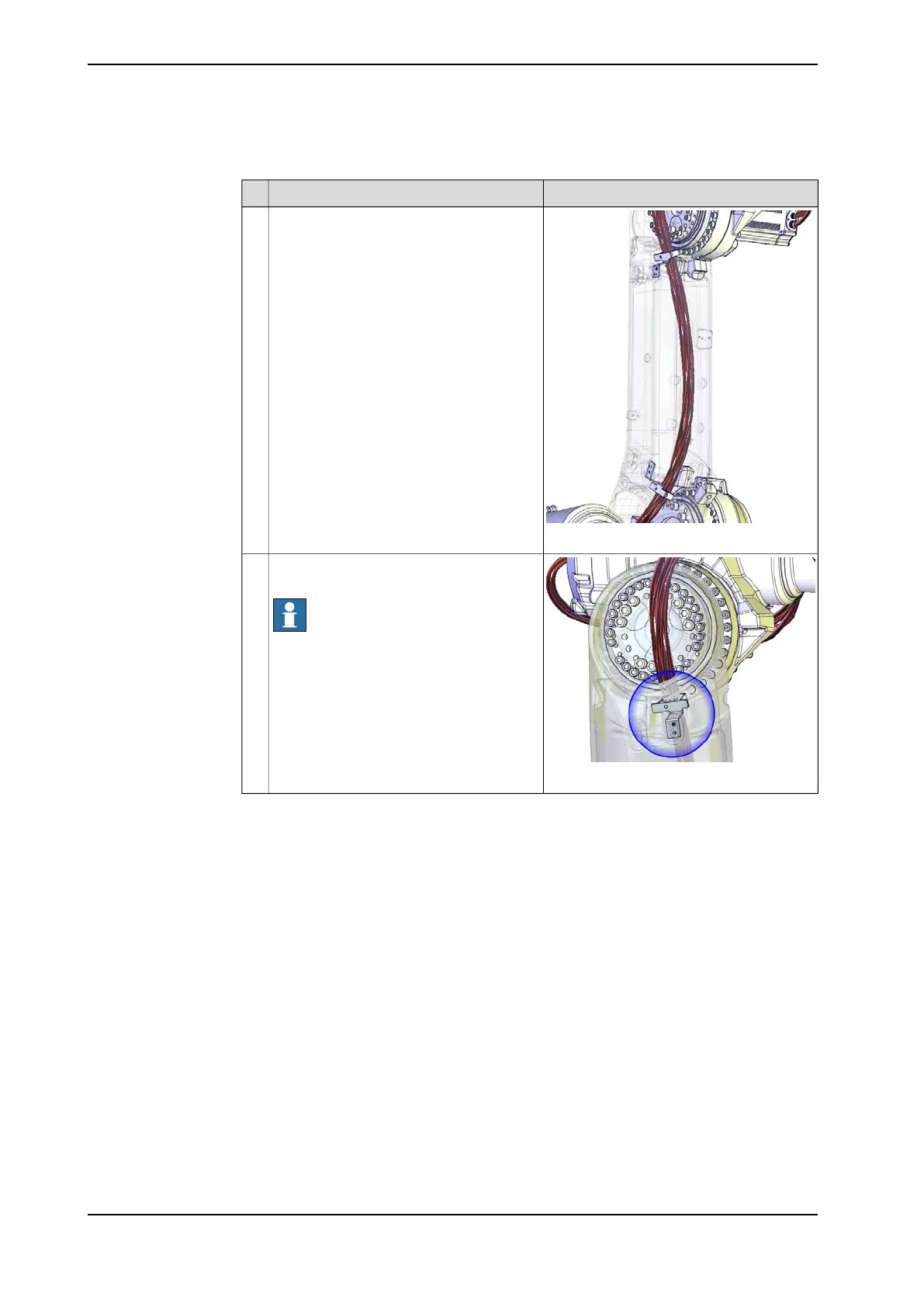

Refitting the cable harness - lower arm
NoteAction
xx1300000595
Before fitting the remaining axis-3 lower
arm cable bracket inside the lower arm,
make sure that it will stay twisted between
the metal clamps, after fitting, as shown in
the figure.
1
xx1300000558
Refit the axis-3 lower arm metal clamp
located on the inside of the lower arm.
Note
The screws are reached from the outside
of the lower arm.
2
Continues on next page
222 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
