2.4.4 Lifting the robot with roundslings

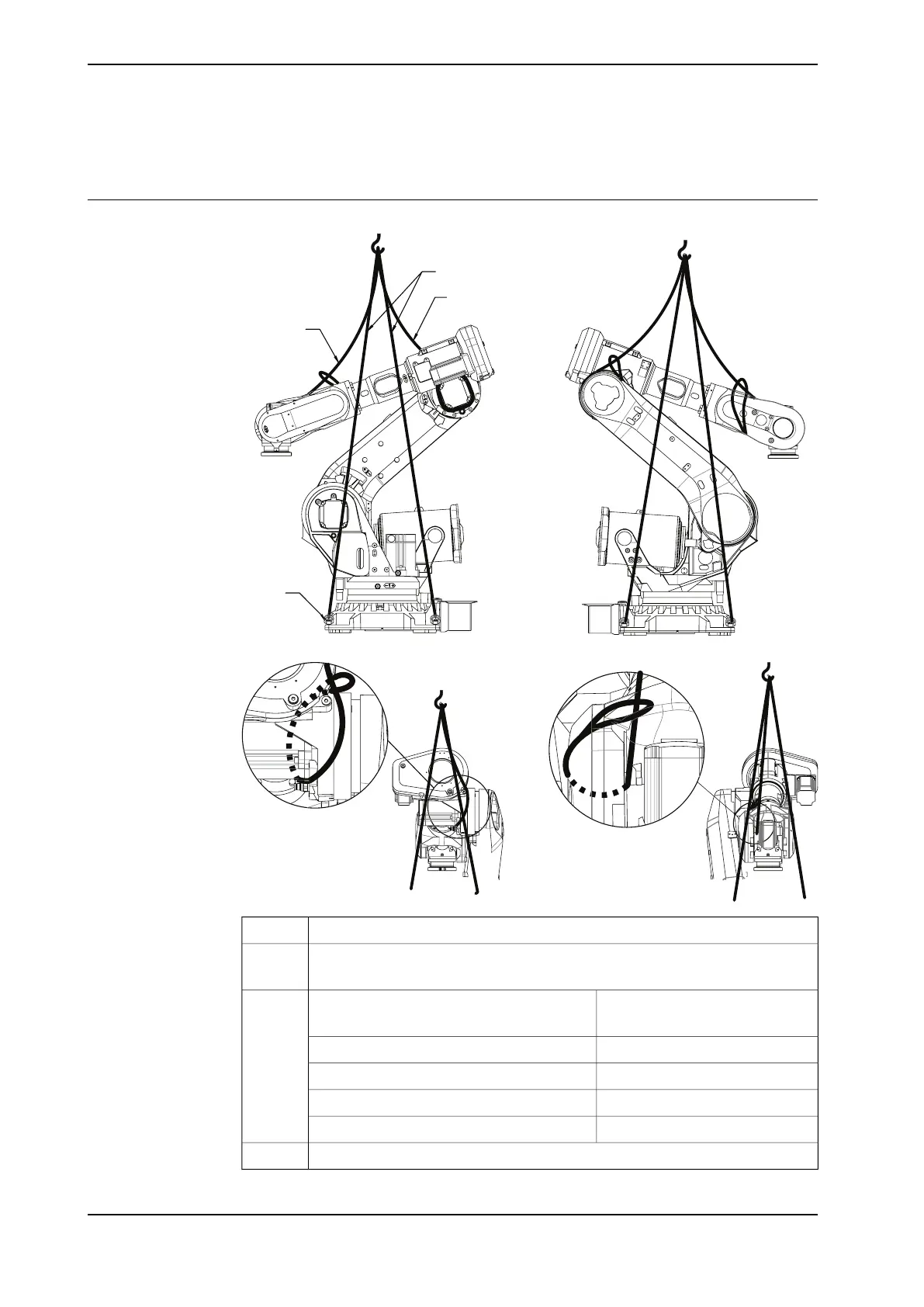

Attaching the roundslings
C
A
B
D
Roundsling, 2.5 m (4 pcs)A
Roundsling, 2 m (1 pc)
Do not strain!
B
LengthRoundsling (1 pc)
Do not strain!
C
2 mIRB 6700 - 235/2.65
2 mIRB 6700 - 205/2.80
2.5 mIRB 6700 - 175/3.05
2.5 mIRB 6700 - 150/3.20
Lifting eye, M20 (4 pcs)D
Continues on next page
