3.3.2 Inspecting the oil level in axis-2 gearbox
Location of oil plug

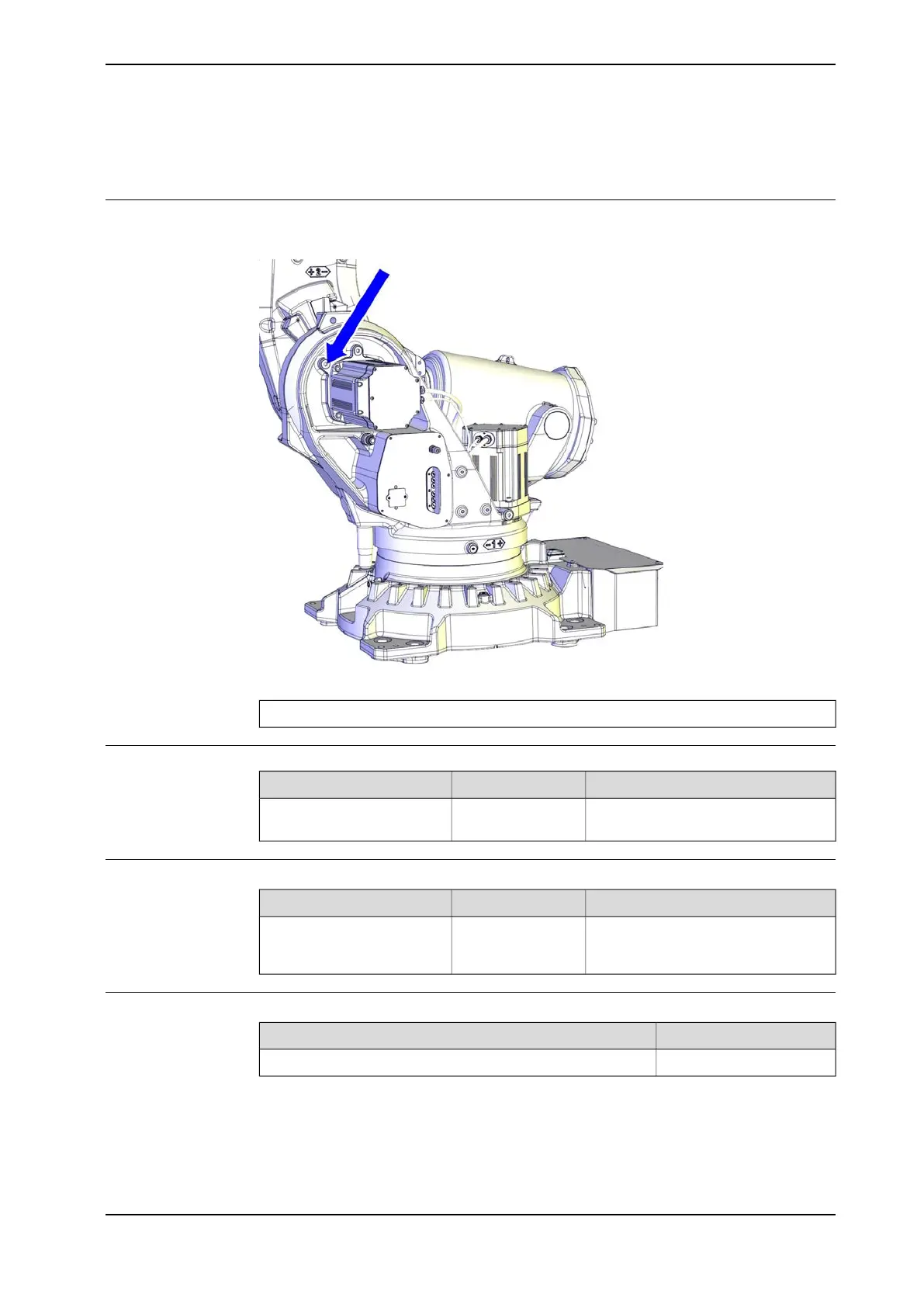

The gearbox has a level plug that is located as shown in the figure.
xx1200000952
Tightening torque: 24 Nm
Required tools
NoteArticle numberEquipment, etc.
Content is defined in section Standard
toolkit on page 559.
-Standard toolkit
Required consumables
NoteArticle numberConsumables
Information about the oil is found in
Technical reference manual - Lubrica-
tion in gearboxes.
-Lubricating oil
Required documents
Document numberDocument name
3HAC042927-001Technical reference manual - Lubrication in gearboxes
