NoteAction

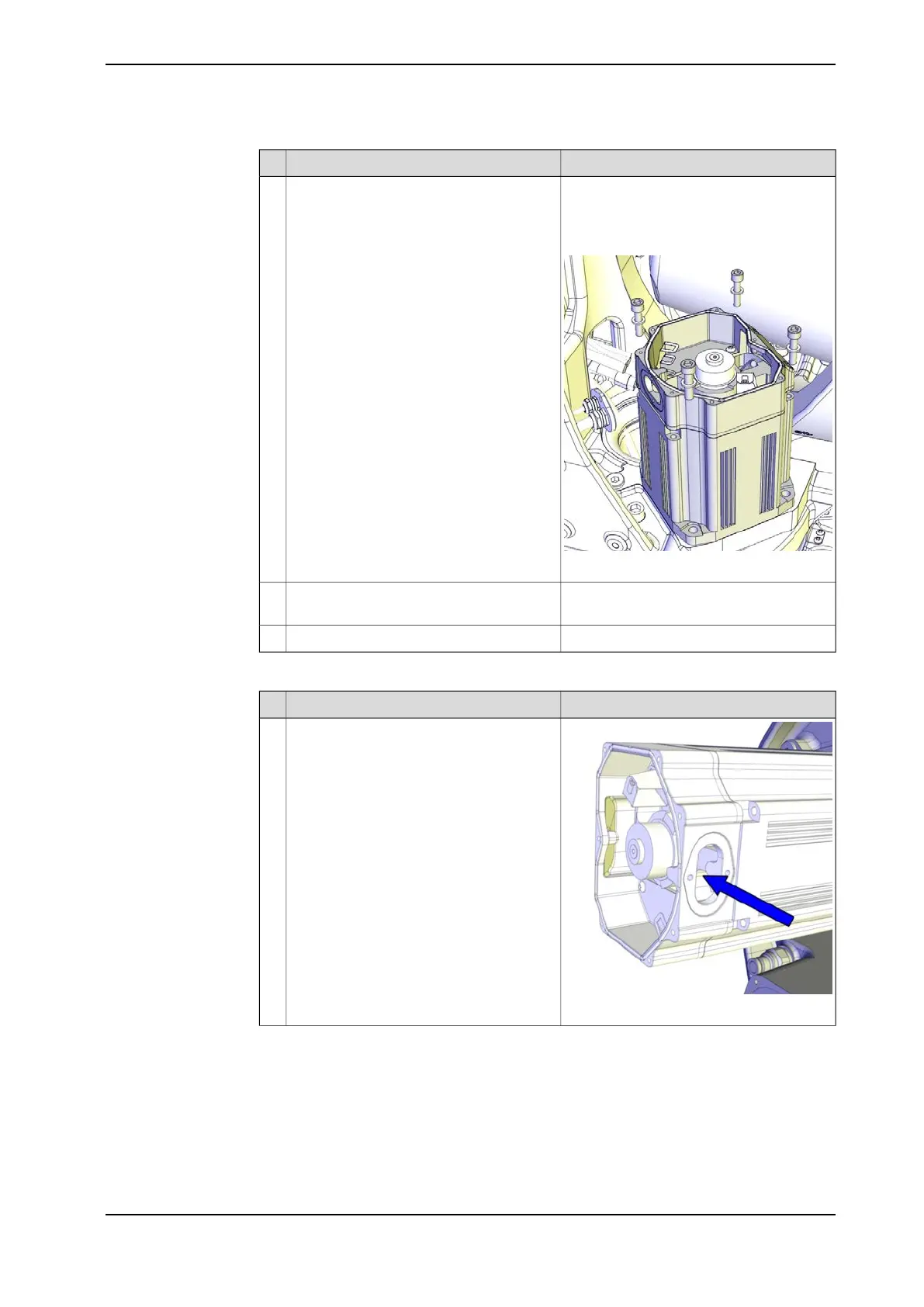

Bits extender: 3HAC12342-1Secure the motor with its attachment
screws and washers.
8
Tightening torque: 47 Nm.
Use a bits extender in order to reach the
screws.
Screw dimension : M10x40 quality 12.9
Gleitmo (4 pcs)
xx1200001071
See Performing a leak-down test on
page 174.
Perform a leak-down test (if not already
done).
9
Disconnect the 24 VDC power supply.10
Connecting the motor cables
NoteAction
xx1300000738
Push the motor cables in through the cable
gland opening.
1
Continues on next page
3HAC044266-001 Revision: - 393
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.1 Replacing the axis-1 motor
Continued
