ABB IRB 6700 - Refitting the Cable Harness in the Base

NoteAction
xx1300000542

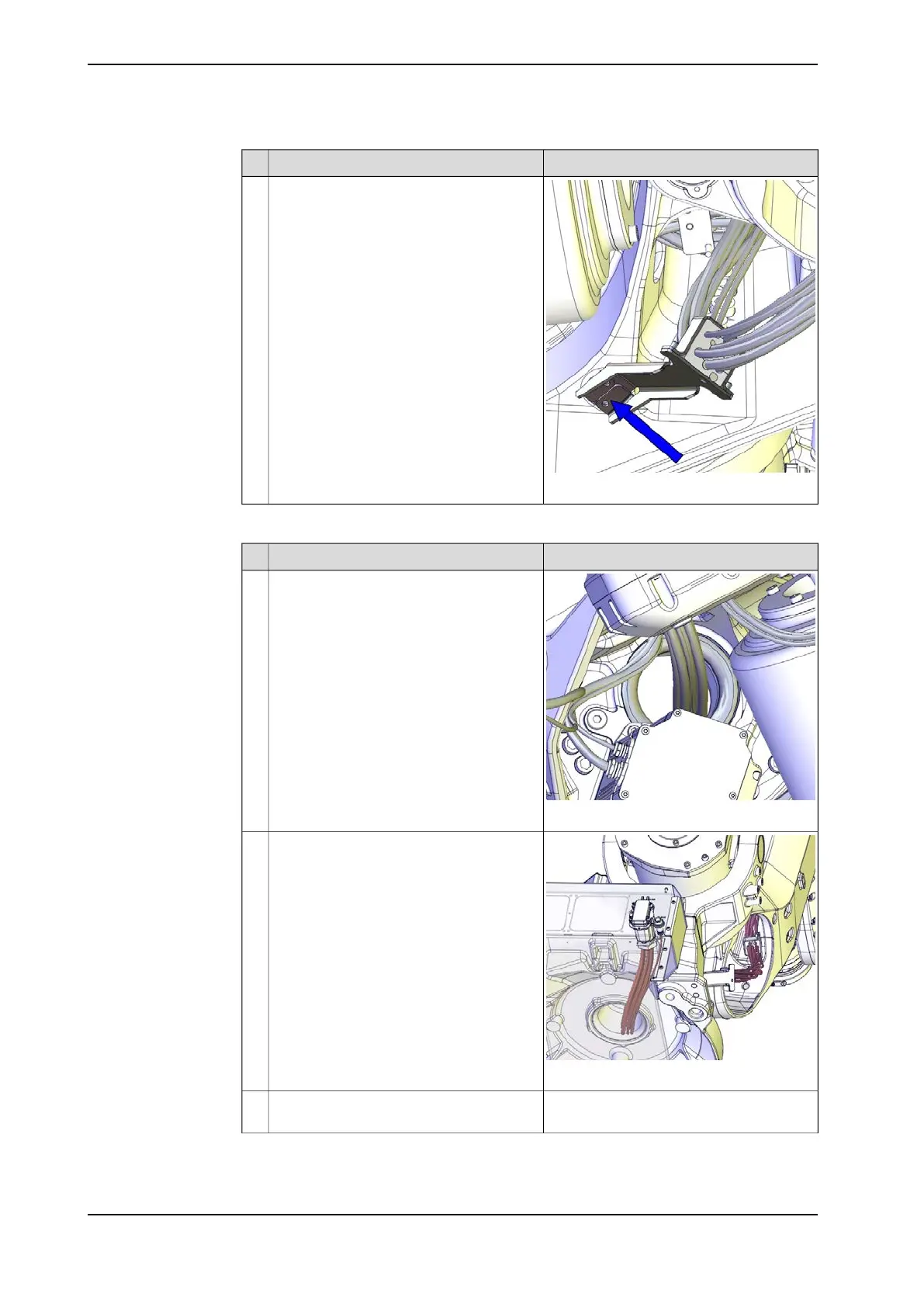

Refit the frame metal clamp.11
Refitting the cable harness in the base
NoteAction
xx1300000732
Use caution and run the cables down
through the protection tube in this order:
• R1.MP
• R1.SMB
1
xx1300000736
• Make sure that the cables are not
twisted. The cables shall be in line
with its position on the base plate.
• Make sure that the R1.SMB will be
on the right side (seen from behind
the robot).
• Make sure that the R1.MP will be on
the left side.
2
Make sure that the markings on the cables
are facing upwards when connected.
3
Continues on next page
216 3HAC044266-001 Revision: -
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Refitting the cable harness
Continued
