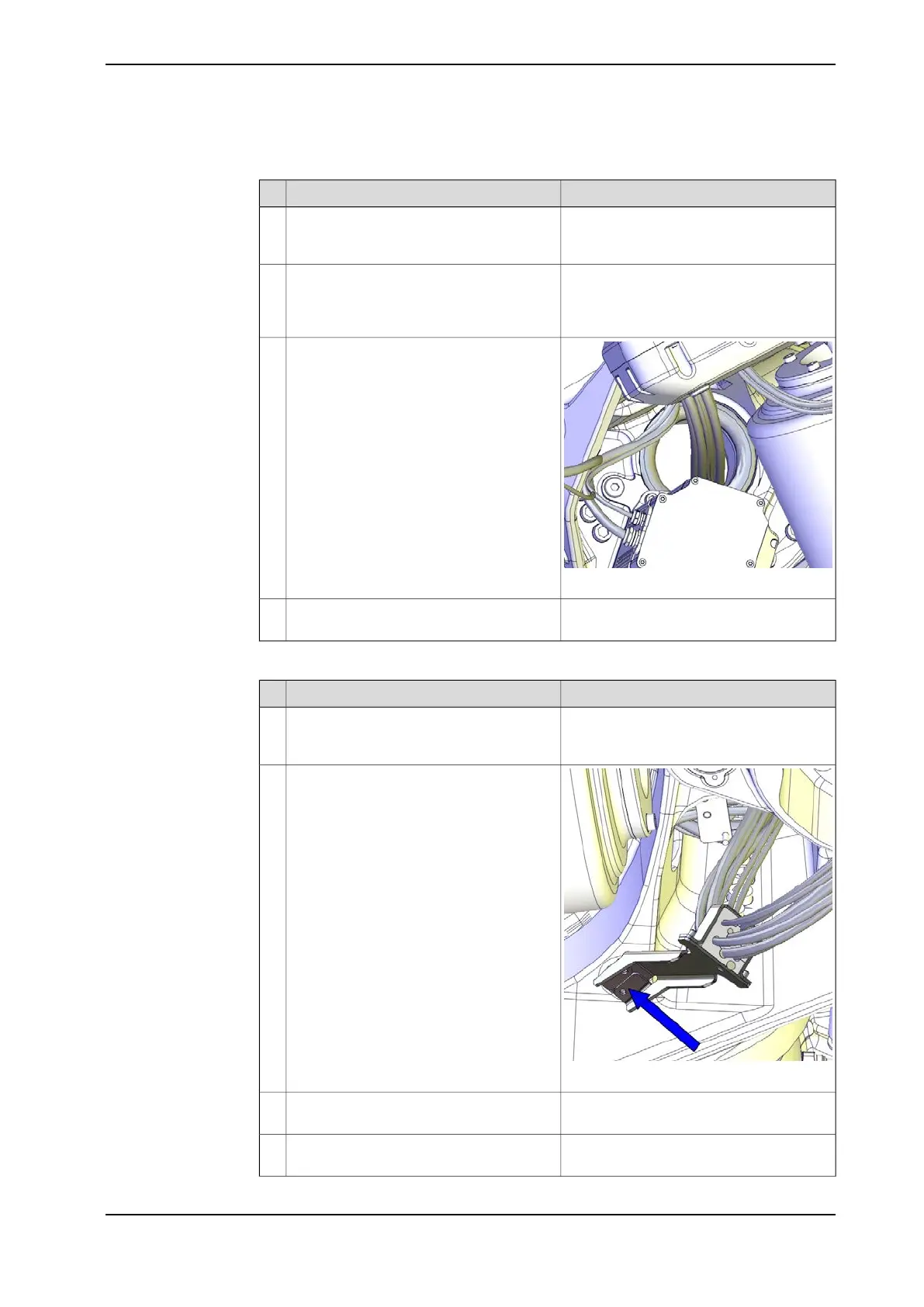

Removing the cable harness in the base
NoteAction
If used, use caution and pull out the
DressPack hoses through the protection
tube in the base.
1
If used, use caution and pull out the
DressPack cables through the protection
tube and place it safely over the balancing
device.
2
xx1300000732
Use caution and pull out the robot cable
harness through the protection tube.
3
Place the cable harness over the balancing
device.
4
Removing the cable harness in the frame
NoteAction
The best way to remove the cable harness
from the frame is to follow the order
presented in the procedure.
1
xx1300000542
Unscrew the attachment screws that hold
the metal clamp frame.
2
If used, remove the metal clamp that hold
the DressPack on the frame.
3
Cut the cable tie that hold the cable har-
ness on the frame.
4
Continues on next page
